14m Truss container shelter

Truss-frame container shelter

14m Truss

Truss-framed strength across a fourteen-metre span, with generous internal height.

Get My Quote
Talk to our team 0800 474 233
14m Clear span
NZ Engineered
10 Year Cover warranty
3,500+ Shelters supplied

Available lengths

Covered area 84 m²
Select a length to see the covered area.

Technical overview

14m Truss specifications

Truss-framed construction for greater internal height and load capacity, on the same fourteen-metre span as our 14m Compact. Every figure is published inside to inside, with the exact millimetre measurement alongside it.

Every Container Shelters end wall is modular, meaning it can be added, removed or upgraded later if your requirements change.

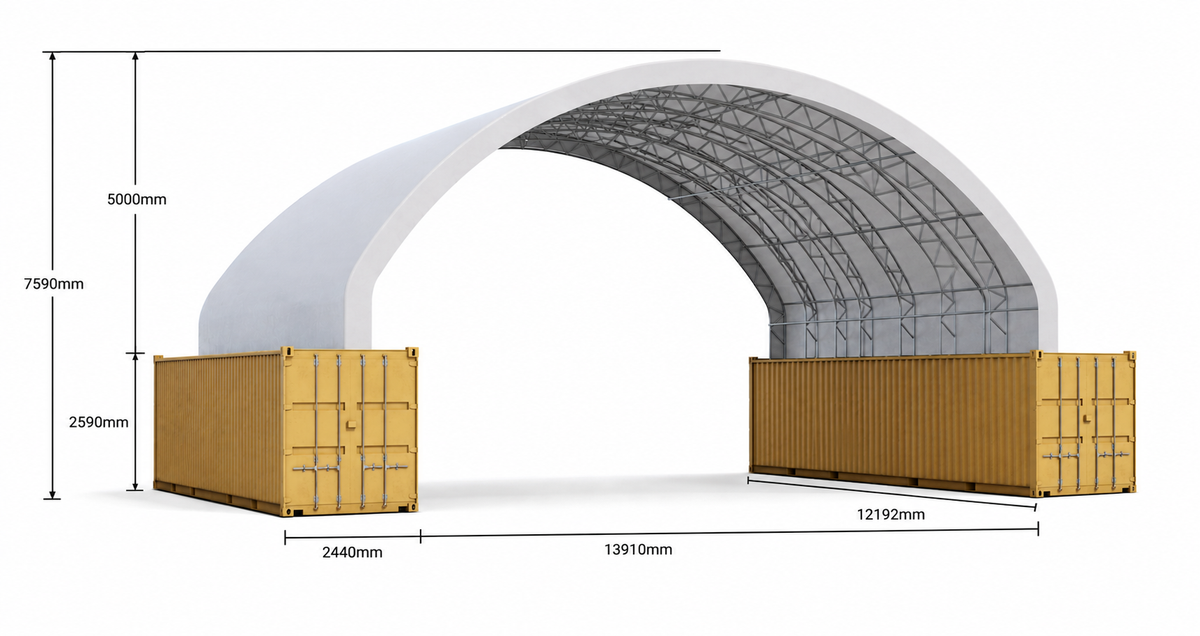

14m Truss container shelter render

Indicative dimensions shown. Final design is confirmed during engineering.

Clear span 14m (13,910mm) inside to inside
Overall footprint Approximately 18.8m including the containers
Length options 20ft, 40ft, 60ft, 80ft, 100ft or custom — we have built beyond 100m
Overall height 7.59m on standard containers; 7.89m on Hi-Cube
Rise 5,000mm above container height to apex
Frame Hot-dip galvanised truss-framed structural steel
Cover 610gsm UV-stabilised RipStop PVC membrane
Mounting Containers, block walls, timber or steel posts
Wind zones Engineered to suit all New Zealand wind zones. Lee zones and other specific-engineering sites are assessed individually
Engineering NZ engineered with site-specific options
Warranty 10-year full replacement factory warranty

Planning a project?

Get a site-specific quote

Tell us the location, required length and intended use. We'll recommend the right configuration and confirm engineering requirements.

Get a Quote
Site-specific engineering and final dimensions may vary according to location, exposure and mounting method.

Mounting options

One width, mounted your way.

The shelter is the same size either way. Mount inside to inside for the full 14m clear span, or outside to outside to bring the containers under cover as well — which reduces the clear space between them to approximately 10.13m. Either option works on single or double-stacked containers.

Not every site suits containers. We also mount on block walls, timber or steel posts — see the Rotorua District Council project below.

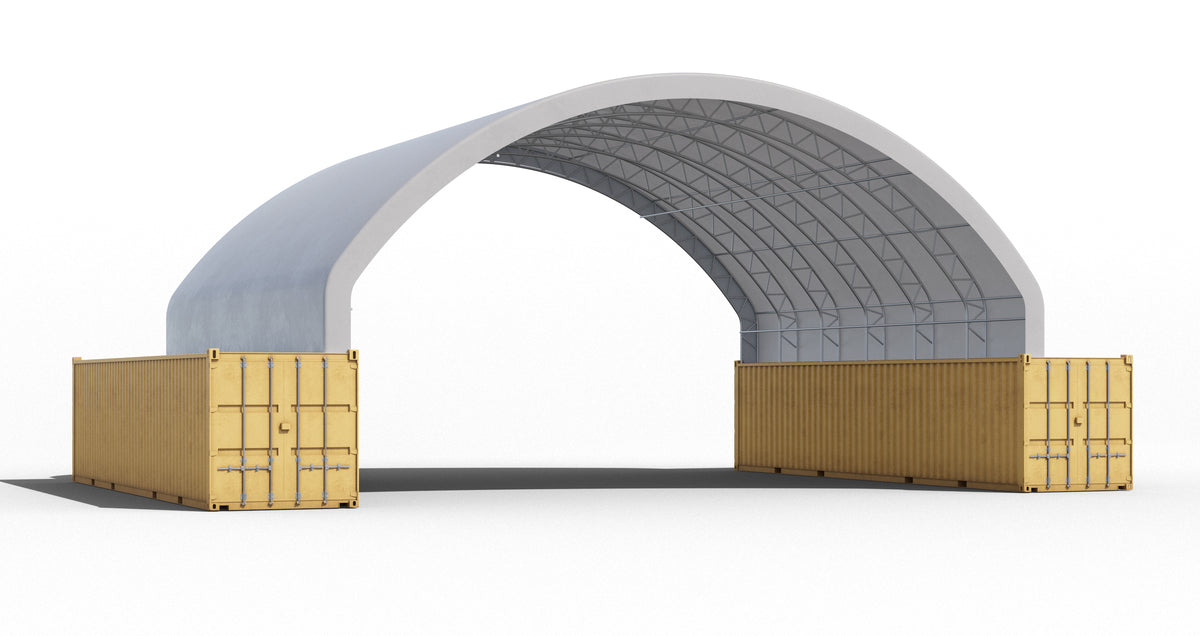

Inside to inside mounted 14m Truss container shelter, single stack Standard

Inside to Inside - Single Stack

The shelter mounts to the inner edges of the containers. The quoted 14m span is the clear space between them.

  • Our standard configuration
  • Span measured between containers
  • Lowest overall height

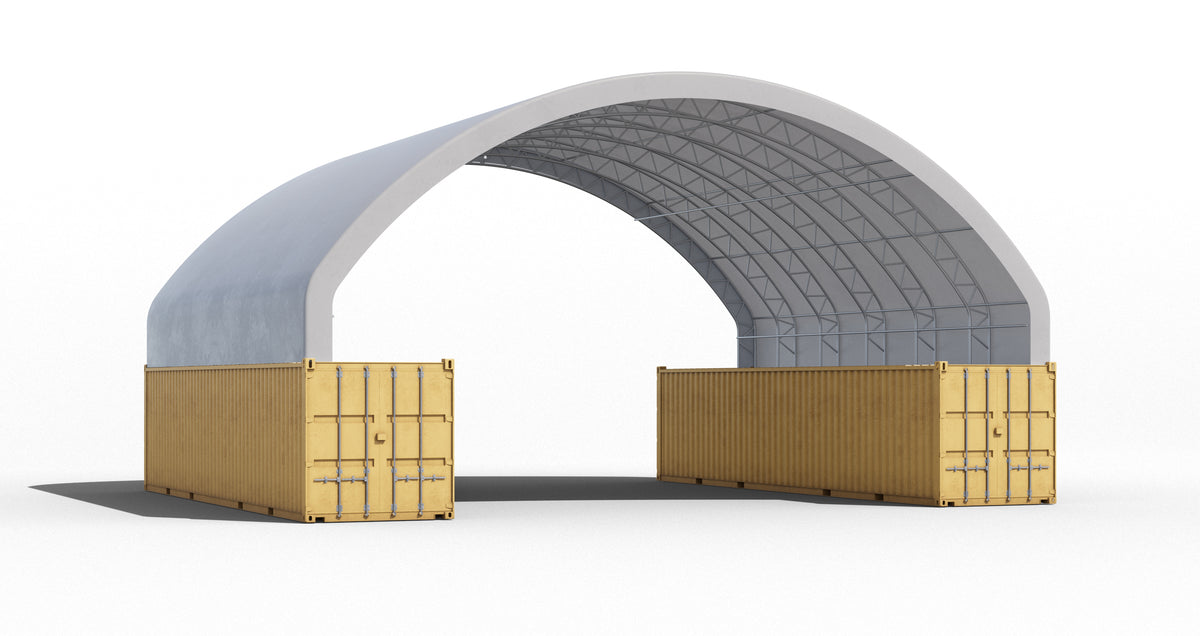

Outside to outside mounted 14m Truss container shelter, single stack

Outside to Outside - Single Stack

The shelter mounts to the outer edges of the containers, so the containers sit under cover as well. The clear space between them is approximately 10.13m.

  • Approximately 10.13m between containers
  • Containers protected under the roof
  • Same overall shelter size

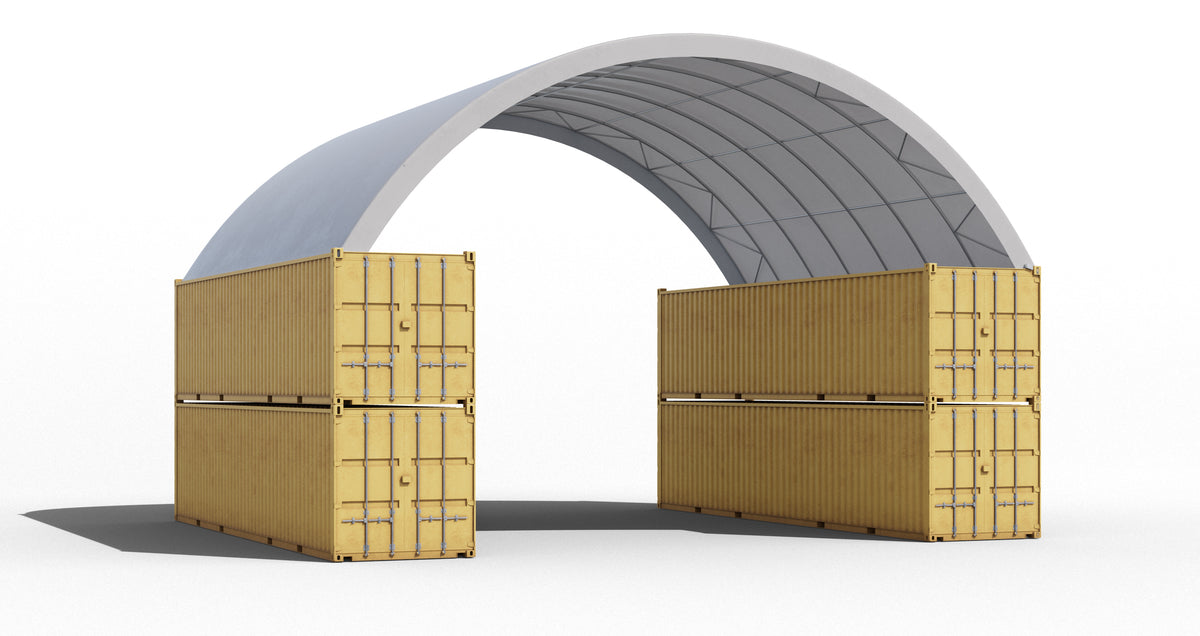

Inside to inside mounted 14m Truss container shelter, double stacked

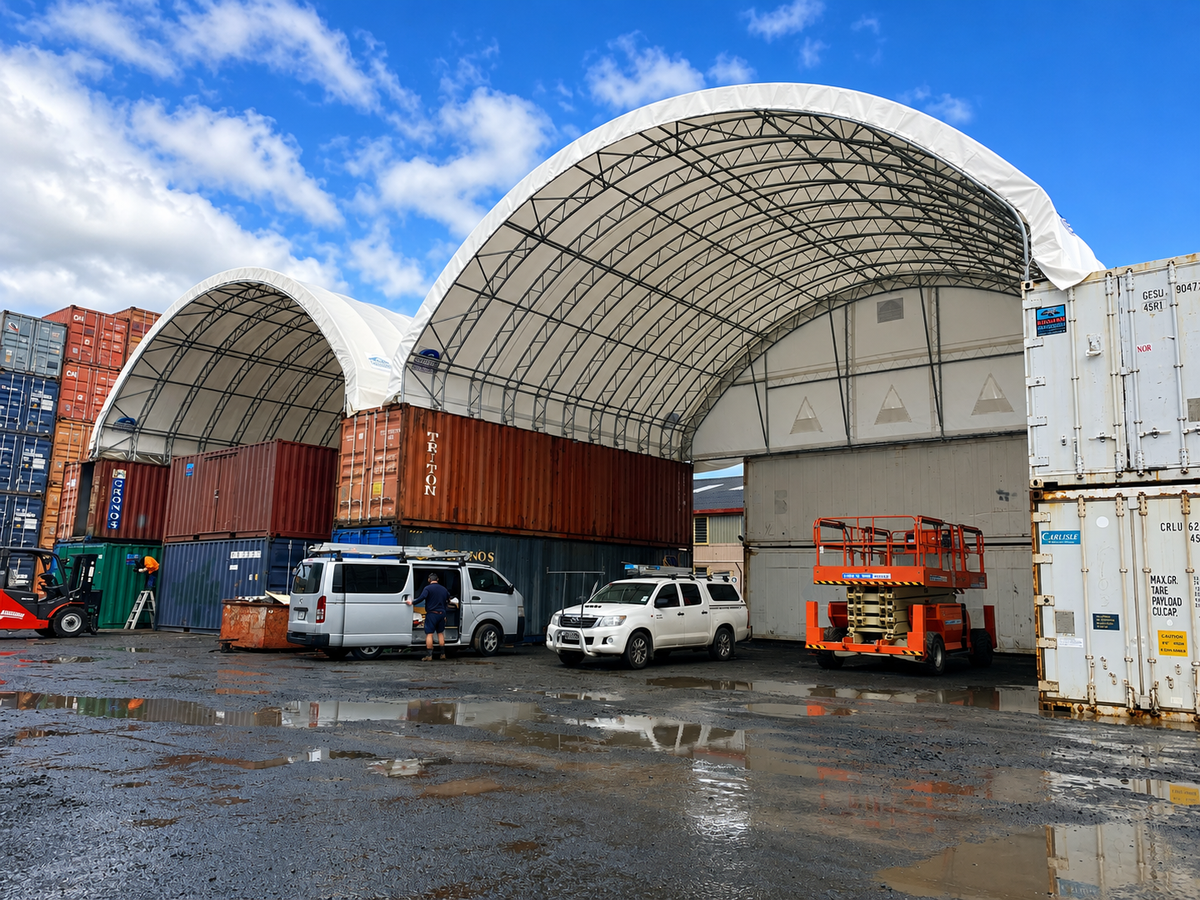

Inside to Inside - Double Stack

Mounted inside to inside on containers stacked two high, for extra height clearance under the shelter.

  • Extra height clearance
  • Span measured between containers
  • Two containers high

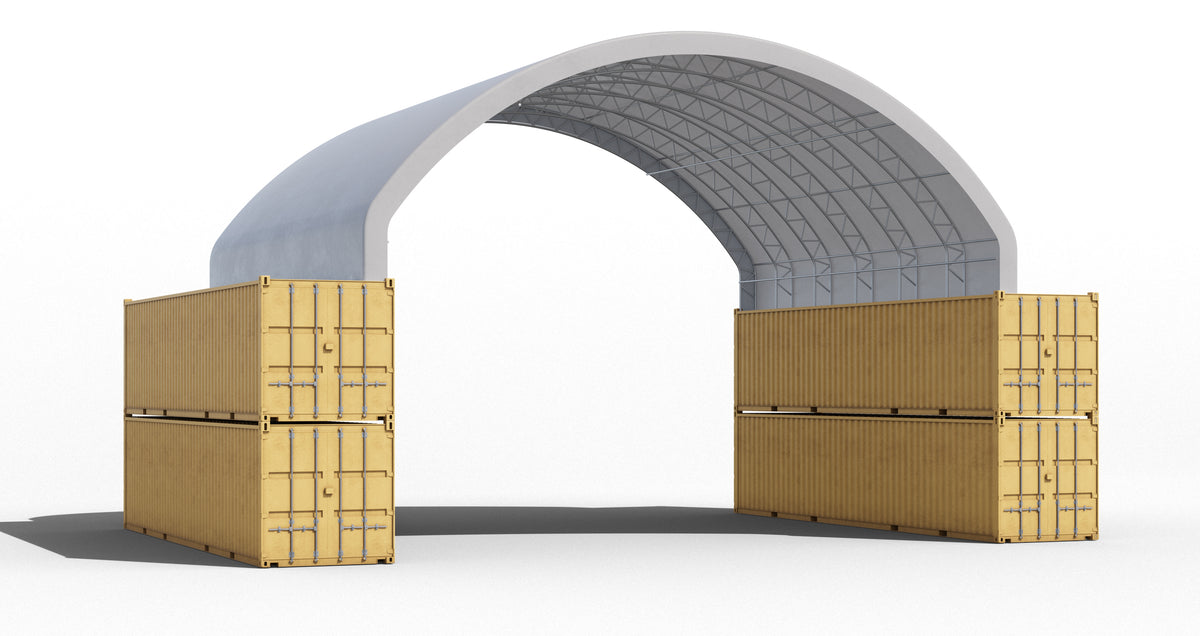

Outside to outside mounted 14m Truss container shelter, double stacked

Outside to Outside - Double Stack

Mounted outside to outside on double-stacked containers, bringing the containers under cover with maximum height clearance.

  • Containers under cover
  • Extra height clearance
  • Two containers high

Built in the real world

Wide span. Serious height.

Where you need to get tall machinery, tipping trucks or stacked product under cover, the truss profile buys you the headroom the arch profiles cannot.

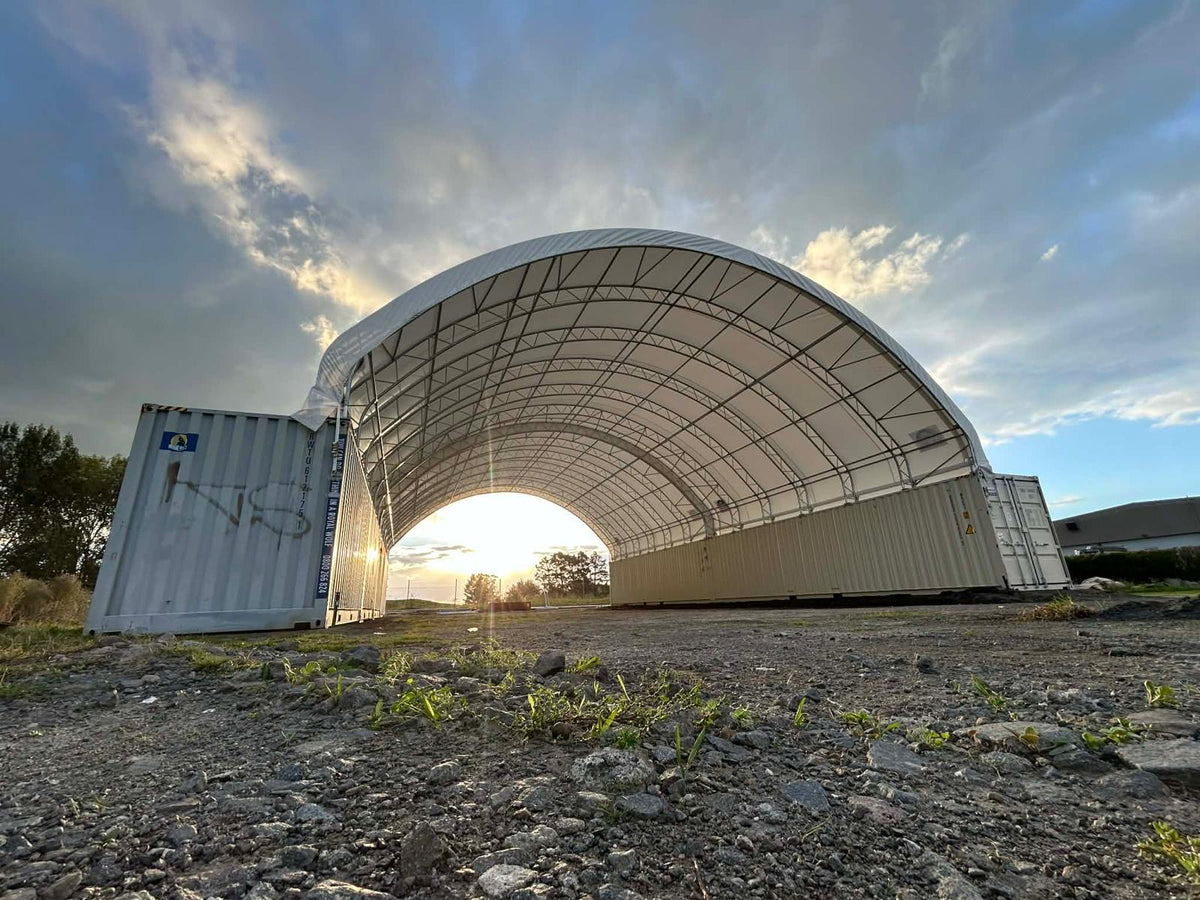

Truss framed

Truss construction carries the span with greater internal height.

Block wall mounted

Mounted on block walls and run end to end for a longer covered area.

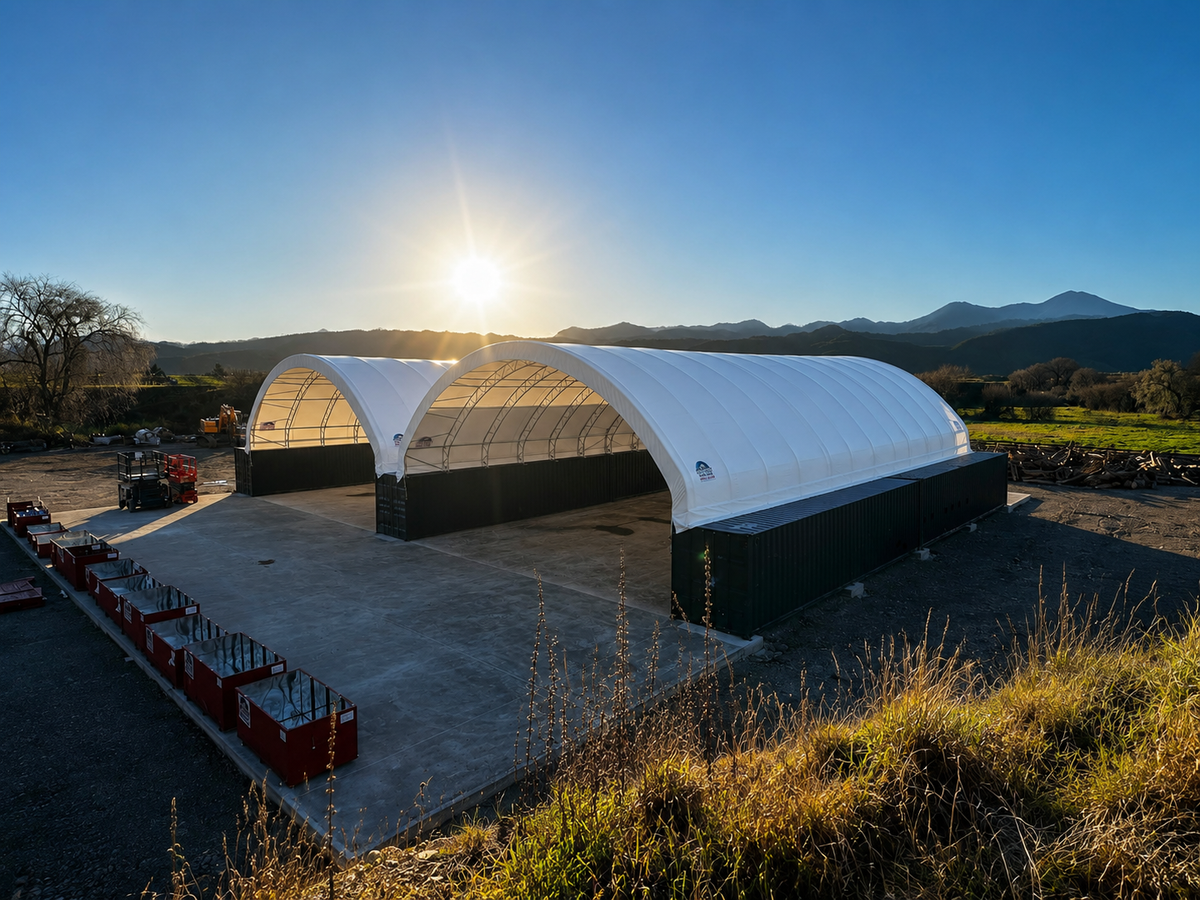

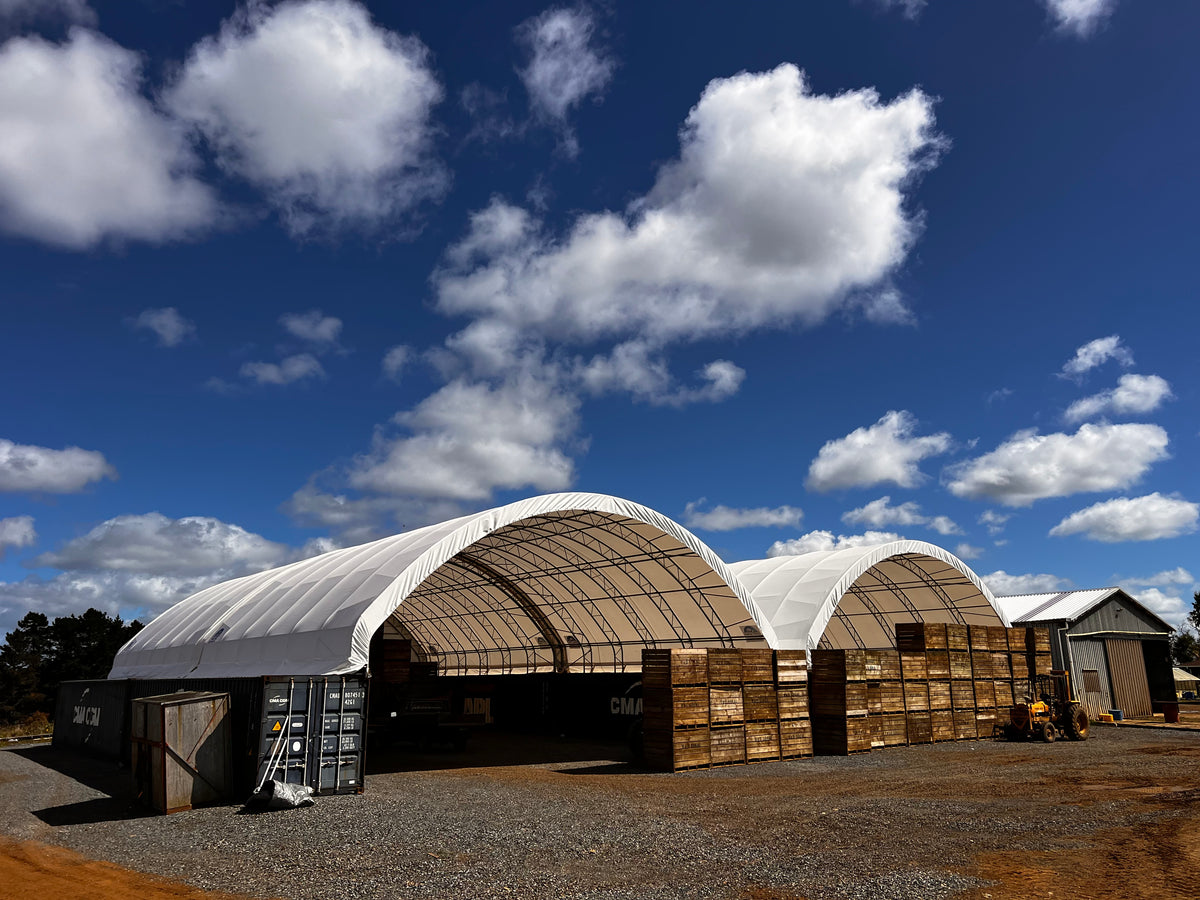

Side by side

Pair shelters to double the covered footprint.

Flexible configuration

Available in multiple lengths and mounting options.

End wall options

Configure your shelter for the way you work.

Choose the right balance of access, weather protection, security and airflow for your site.

Every Container Shelters end wall is modular, meaning it can be added, removed or upgraded later if your requirements change.

Open End

Maximum access and airflow for machinery, vehicles and high-traffic operations.

  • Lowest-cost configuration
  • Maximum access
  • Fastest installation

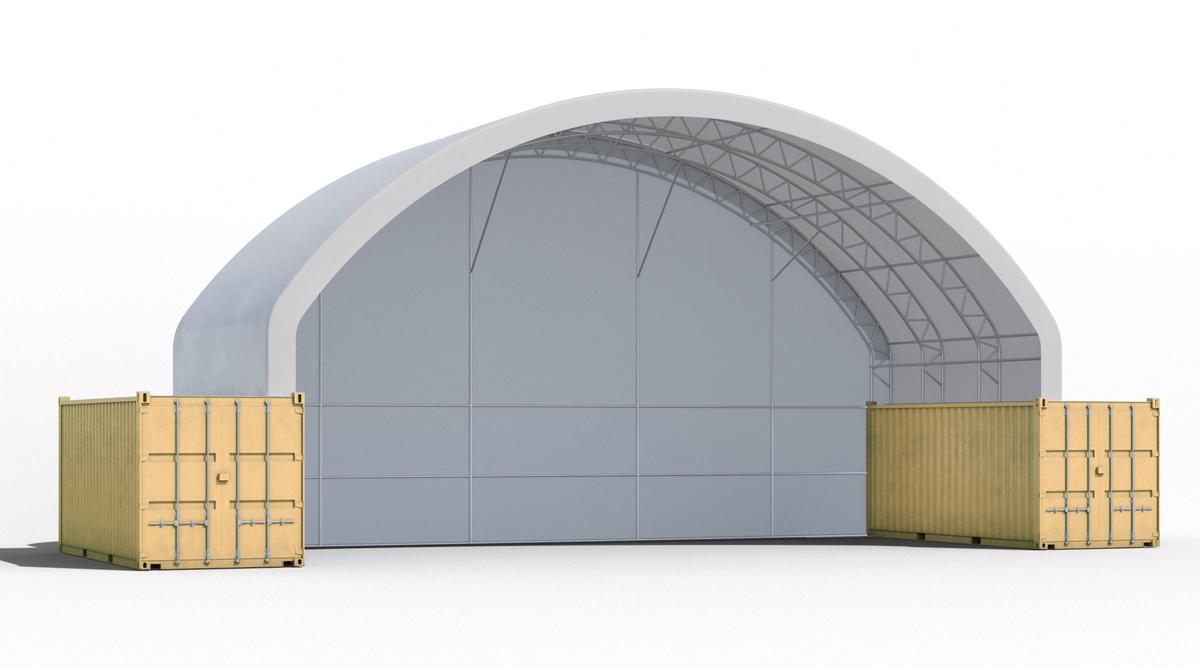

Full End Wall

Maximum weather protection for bulk materials, storage and demanding industrial sites.

  • Full-height protection
  • Better environmental control
  • Custom access openings available
Popular

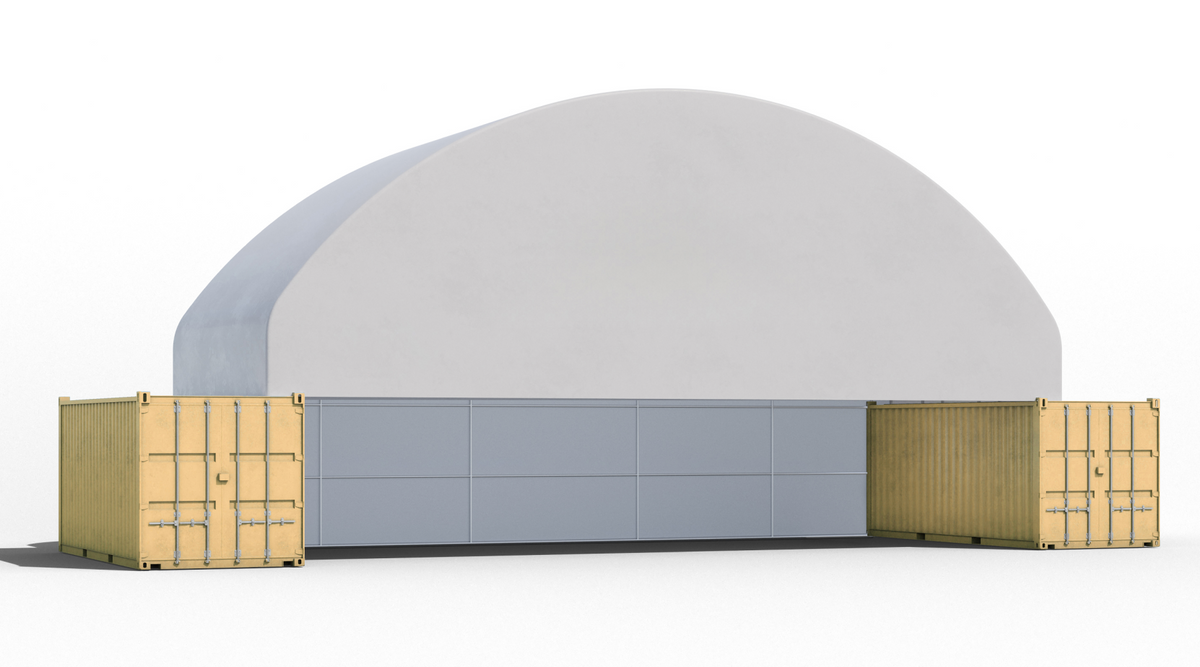

Half End Wall

Extra protection from prevailing weather while maintaining generous access.

  • Reduces wind and rain entry
  • Maintains good ventilation
  • Ideal for machinery storage

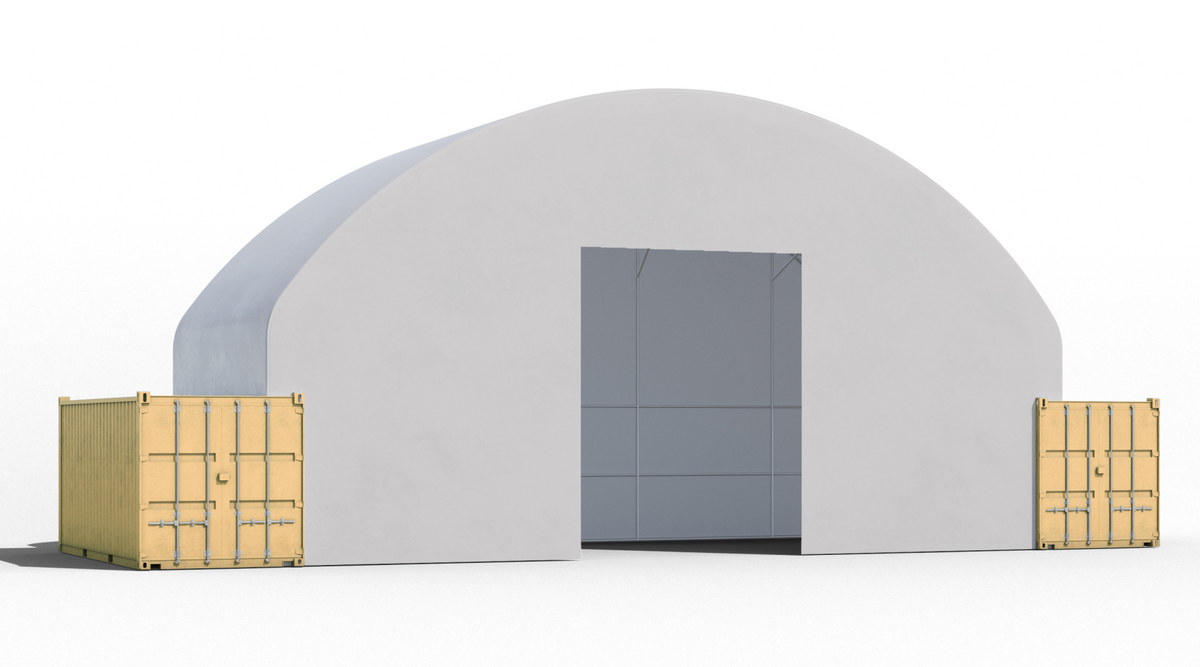

Mechanical Door

Add secure, controlled access without sacrificing the shelter's modular design.

  • Lockable access
  • Improved security
  • Personnel or vehicle options

Need something different?

Built around your operation.

We've spent more than 12 years solving unusual storage problems. Roller doors, personnel doors, louvres, custom flashings, extra-wide openings and bespoke fabrication are all possible.

Talk to Our Team

The Container Shelters difference

KeeperTrack

12 Years of Continuous Improvement.

2016 Previous generation
Earlier Container Shelters end wall edge fixing system

Industry standard edge fixing

Our earlier end wall system relied on a more conventional edge-fixing method.

  • More visible fabric movement
  • Less consistent long-term tension
  • Noisy in a wind event
  • More manual adjustment
2026 KeeperTrack today
KeeperTrack continuous bead in an aluminium extrusion

KeeperTrack

A Keder bead slides into a precision aluminium extrusion for a cleaner, tighter finish.

  • Maintains more consistent fabric tension
  • Cleaner, more premium appearance
  • Reduced movement in strong winds
  • Silent in a wind event

Built from more than 12 years of real-world experience.

After supplying thousands of shelters, we redesigned the way our end walls attach to the container. KeeperTrack is the result.

We don't just sell shelters. We continually improve them.

Continuous Keder edge system
Precision Aluminium extrusion
Evolved Through real-world use

Built for business. Proven in the real world.

Project Spotlight

Purpose-built cover for sites with real constraints.

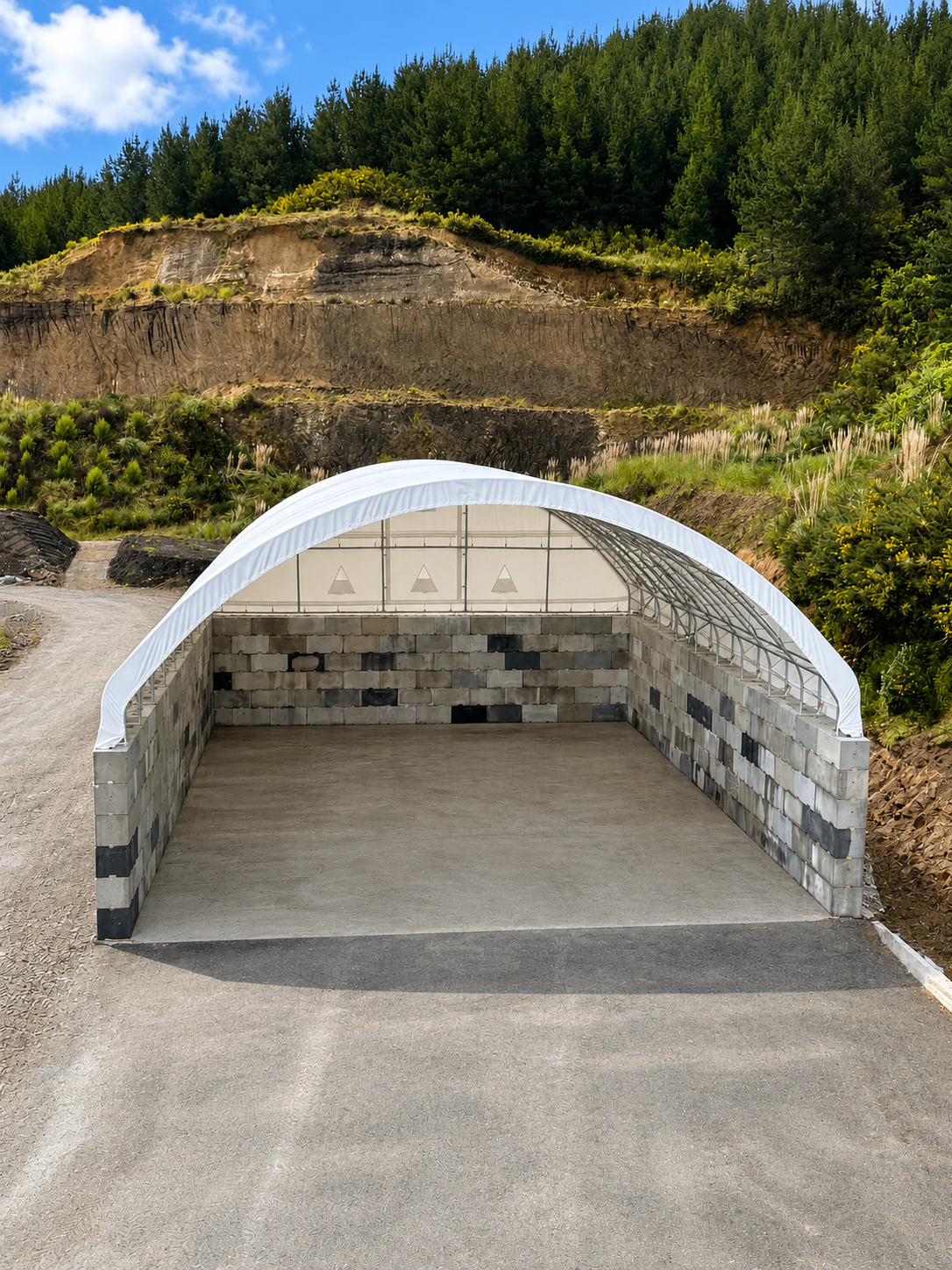

14m Truss container shelter on six-course block walls at the Rotorua District Council FOGO plant
Built to Perform. Proven in the Real World. Rotorua District Council Rotorua, New Zealand

Engineered, consented and installed for a working organics plant.

14m Clear span
3.6m Block wall height
8.6m Internal height to apex
Council / Organics Sector

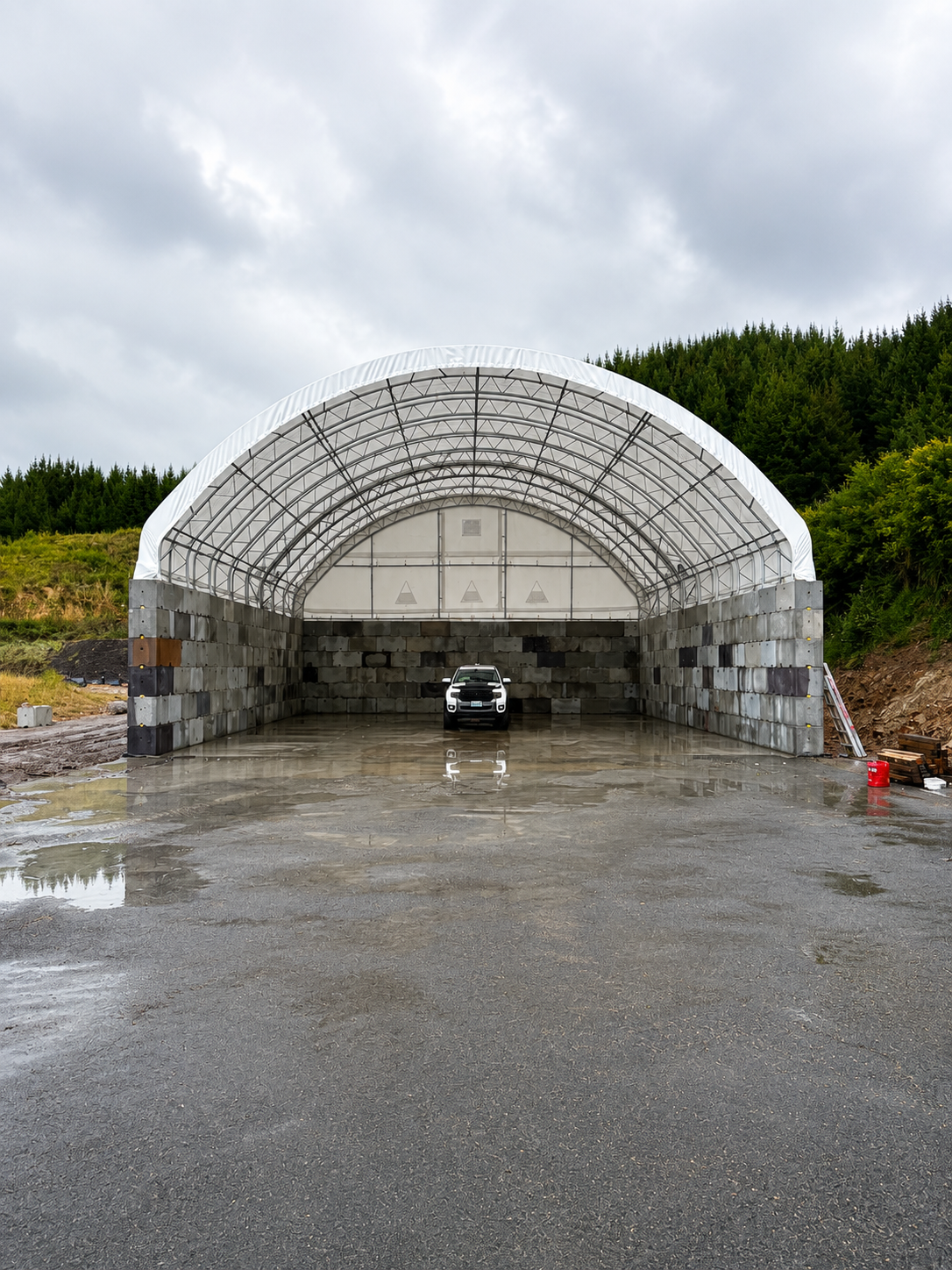

The project

Six courses of block, then five metres of truss.

Rotorua District Council needed serious covered volume at their FOGO plant, where food and green organics are processed. A 14m x 40ft Truss shelter was mounted on six courses of interlocking, vertically reinforced blocks — 3.6 metres of block wall before the shelter even starts, and 8.6 metres to the apex once it does.

The block wall foundations and blockwork were carried out by others. We worked in alongside them to get the structure engineered and consented, then installed. The project was delivered for the Council through their consultants, with whom we have completed multiple large-scale shelter installations.

3,500+ Shelters supplied

Proven across New Zealand, Australia and the Pacific.

From farm storage to major commercial installations, every project benefits from more than 12 years of continuous product refinement and real-world experience.
