12m Super Heavy Duty container shelter

Super heavy-duty container shelter

12m Super Heavy Duty

Twelve metres of clear span for machinery, bulk storage and workshop use.

Get My Quote
Talk to our team 0800 474 233
12m Clear span
NZ Engineered
10 Year Cover warranty
3,500+ Shelters supplied

Available lengths

Covered area 73 m²
Select a length to see the covered area.

Technical overview

12m Super Heavy Duty specifications

A twelve-metre clear span, published inside to inside so you know exactly what you are getting before you order.

Every Container Shelters end wall is modular, meaning it can be added, removed or upgraded later if your requirements change.

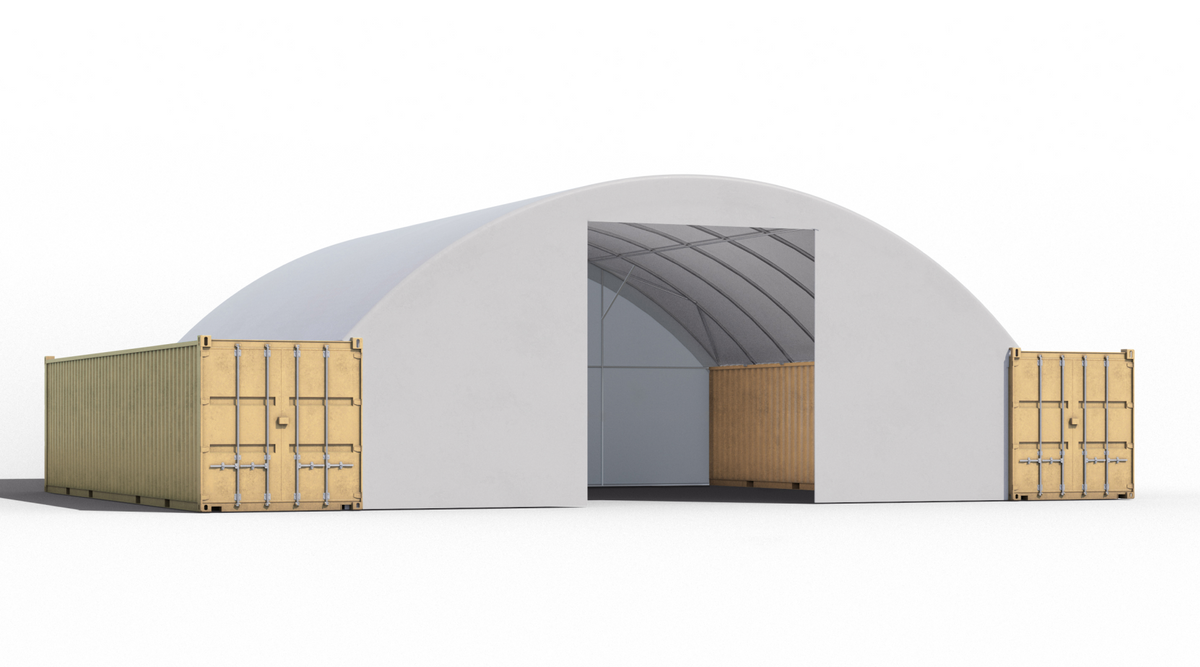

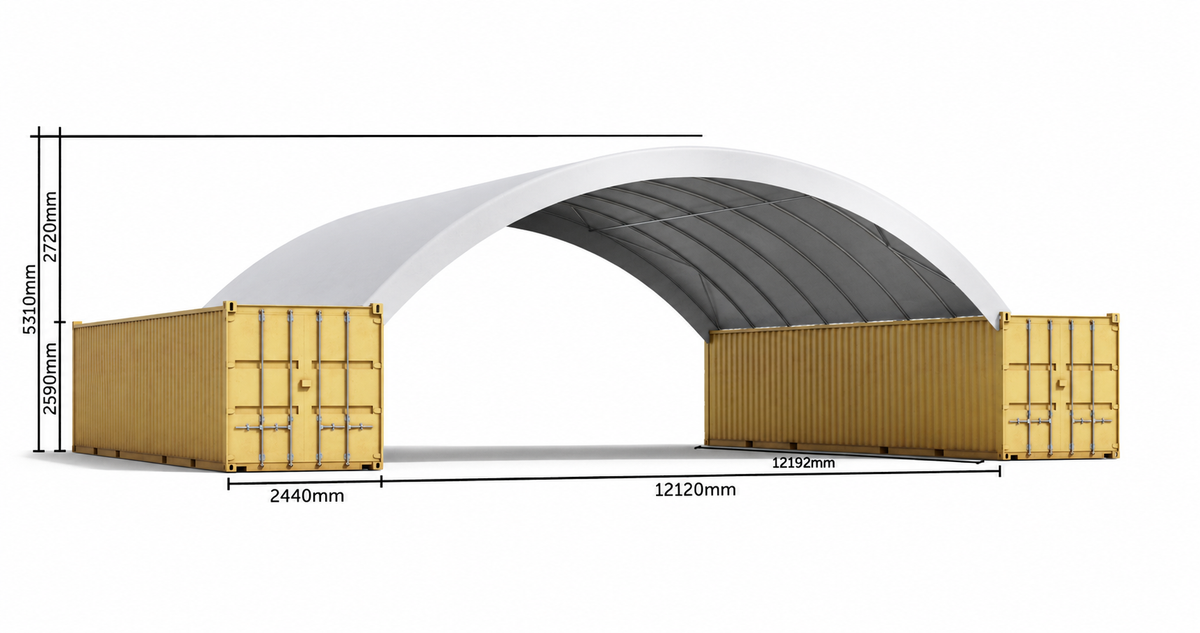

12m Super Heavy Duty container shelter render

Indicative dimensions shown. Final design is confirmed during engineering.

Clear span 12m (12,120mm) inside to inside
Overall footprint Approximately 17m including the containers
Length options 20ft, 40ft, 60ft, 80ft, 100ft or custom — we have built beyond 100m
Overall height 5.31m on standard containers; 5.61m on Hi-Cube
Rise 2,720mm above container height to apex
Frame Hot-dip galvanised structural steel
Cover 610gsm UV-stabilised RipStop PVC membrane
Mounting Containers, block walls, timber or steel posts
Wind zones Engineered to suit all New Zealand wind zones. Lee zones and other specific-engineering sites are assessed individually
Engineering NZ engineered with site-specific options
Warranty 10-year full replacement factory warranty

Planning a project?

Get a site-specific quote

Tell us the location, required length and intended use. We'll recommend the right configuration and confirm engineering requirements.

Get a Quote
Site-specific engineering and final dimensions may vary according to location, exposure and mounting method.

Mounting options

One width, mounted your way.

Mount inside to inside for the full 12m clear span, or outside to outside to bring the containers under cover as well — which reduces the clear space between them to approximately 7.64m. Either option works on single or double-stacked containers.

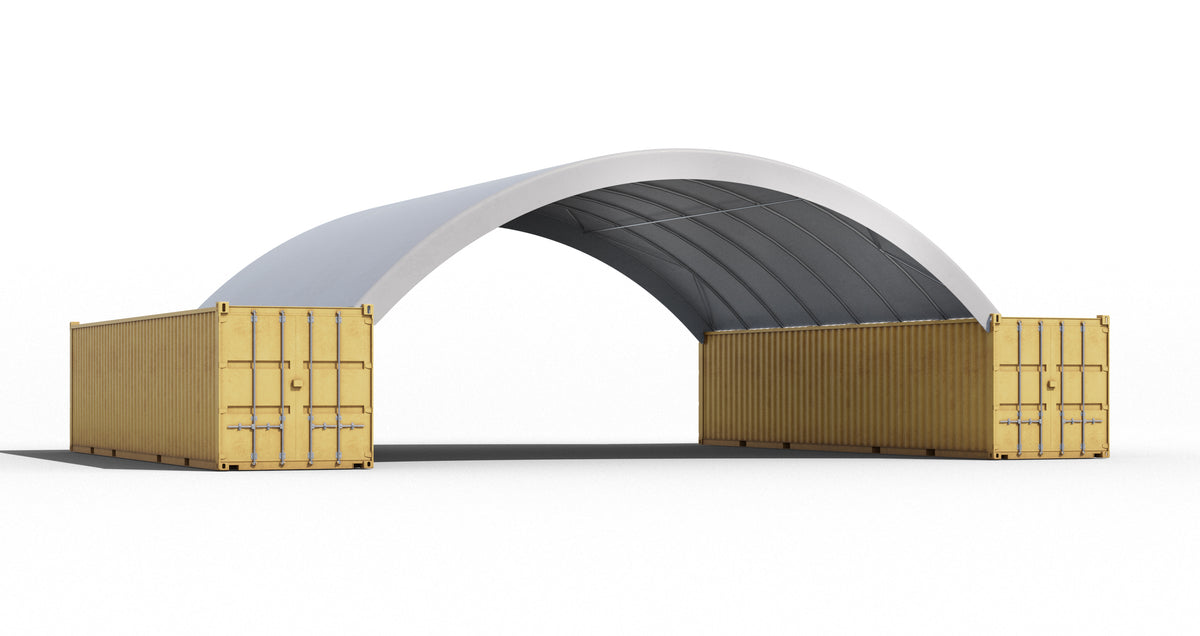

Inside to inside mounted 12m container shelter, single stack Standard

Inside to Inside - Single Stack

The shelter mounts to the inner edges of the containers. The quoted 12m span is the clear space between them.

  • Our standard configuration
  • Span measured between containers
  • Lowest overall height

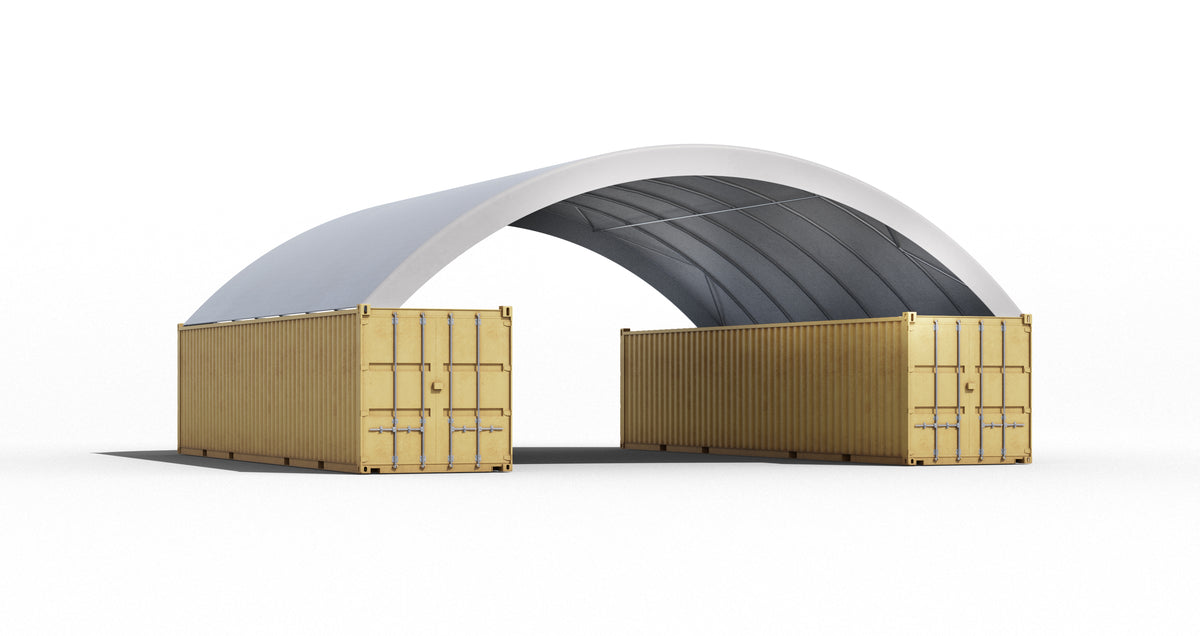

Outside to outside mounted 12m container shelter, single stack

Outside to Outside - Single Stack

The shelter mounts to the outer edges of the containers, so the containers sit under cover as well. The clear space between them is approximately 7.64m.

  • Approximately 7.64m between containers
  • Containers protected under the roof
  • Lowest overall height

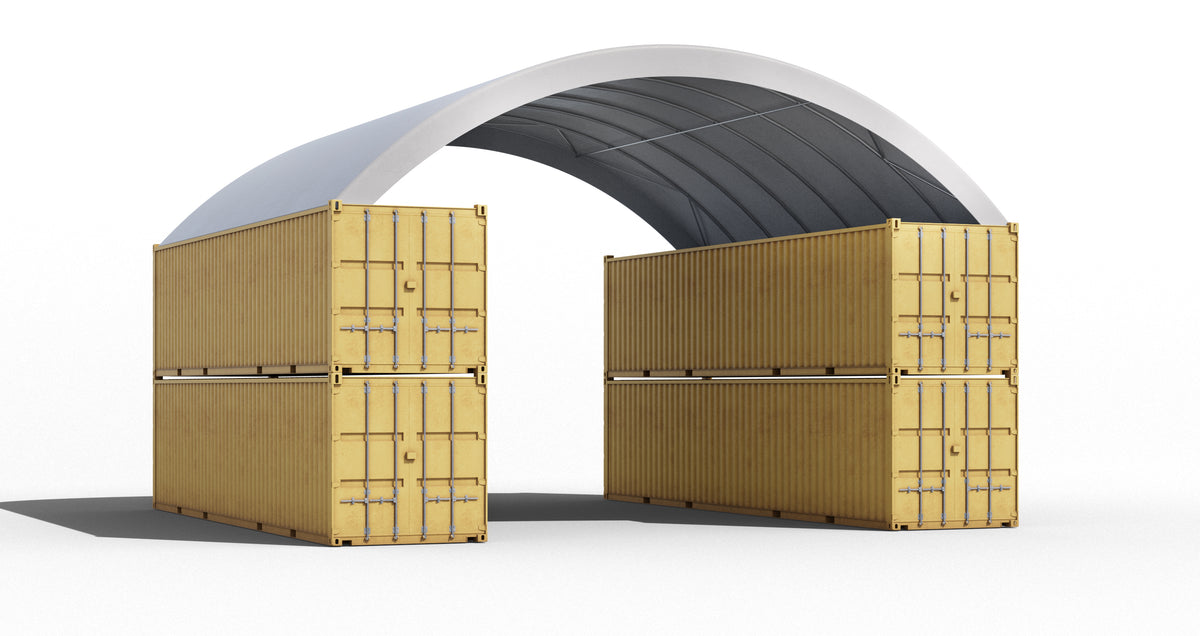

Inside to inside mounted 12m container shelter, double stacked

Inside to Inside - Double Stack

Mounted inside to inside on containers stacked two high, for extra height clearance under the shelter.

  • Extra height clearance
  • Span measured between containers
  • Two containers high

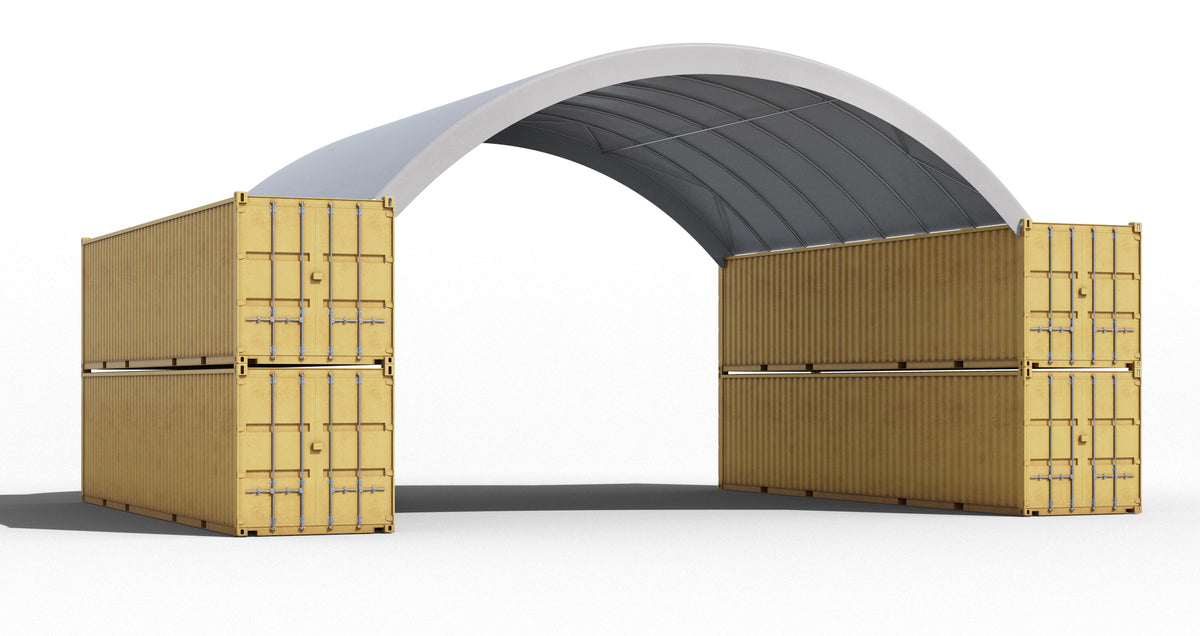

Outside to outside mounted 12m container shelter, double stacked

Outside to Outside - Double Stack

Mounted outside to outside on double-stacked containers, bringing the containers under cover with maximum height clearance.

  • Containers under cover
  • Extra height clearance
  • Two containers high

Built in the real world

Wide span. Serious capacity.

From equipment and vehicle storage to workshops and site protection, the 12m span delivers dependable covered space without a conventional building footprint.

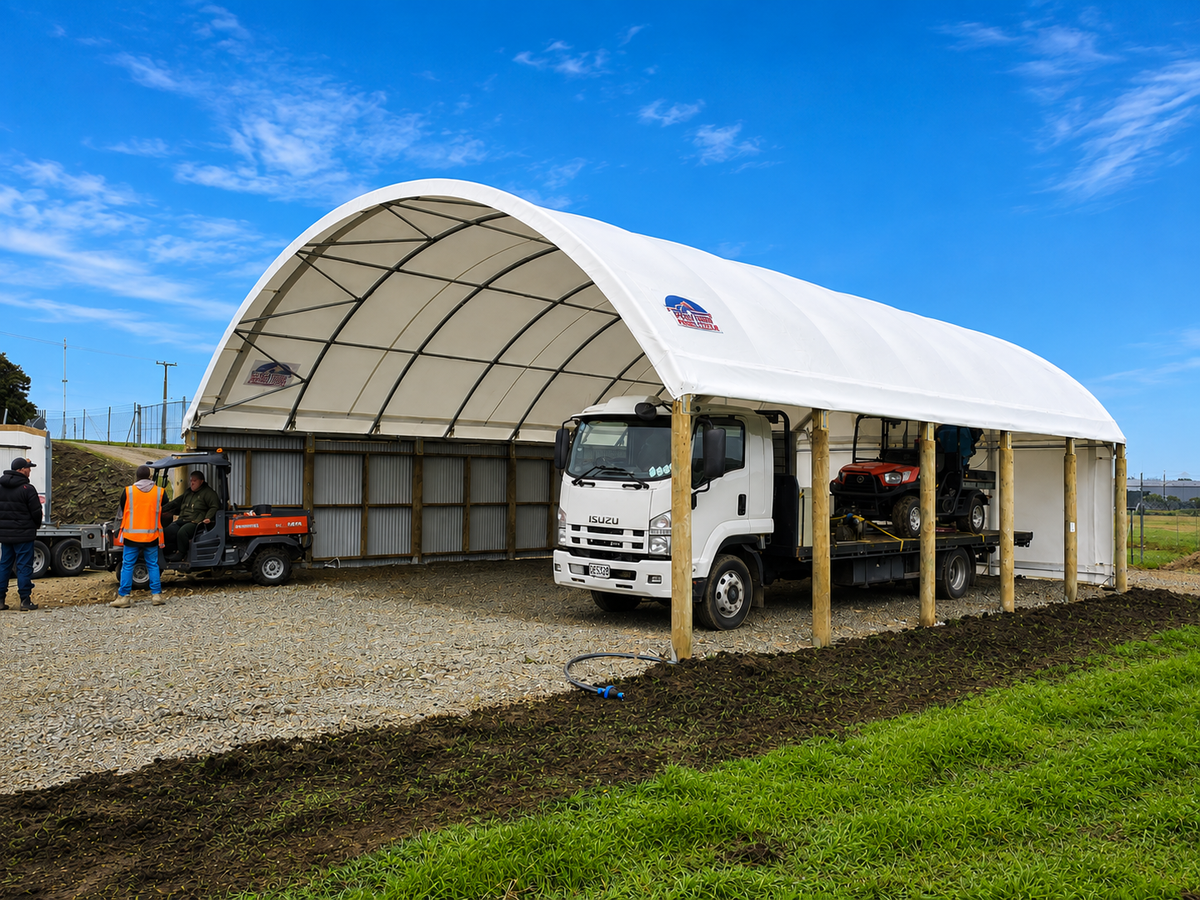

Flexible mounting options

Choose from containers, poles, block walls and more.

Workshop capable

Enough clear span to work around machinery, not just store it.

Rapid install, easy relocation

Take it with you when you leave.

Trusted by the best

When investments need protection.

End wall options

Configure your shelter for the way you work.

Choose the right balance of access, weather protection, security and airflow for your site.

Every Container Shelters end wall is modular, meaning it can be added, removed or upgraded later if your requirements change.

Open End

Maximum access and airflow for machinery, vehicles and high-traffic operations.

  • Lowest-cost configuration
  • Maximum access
  • Fastest installation

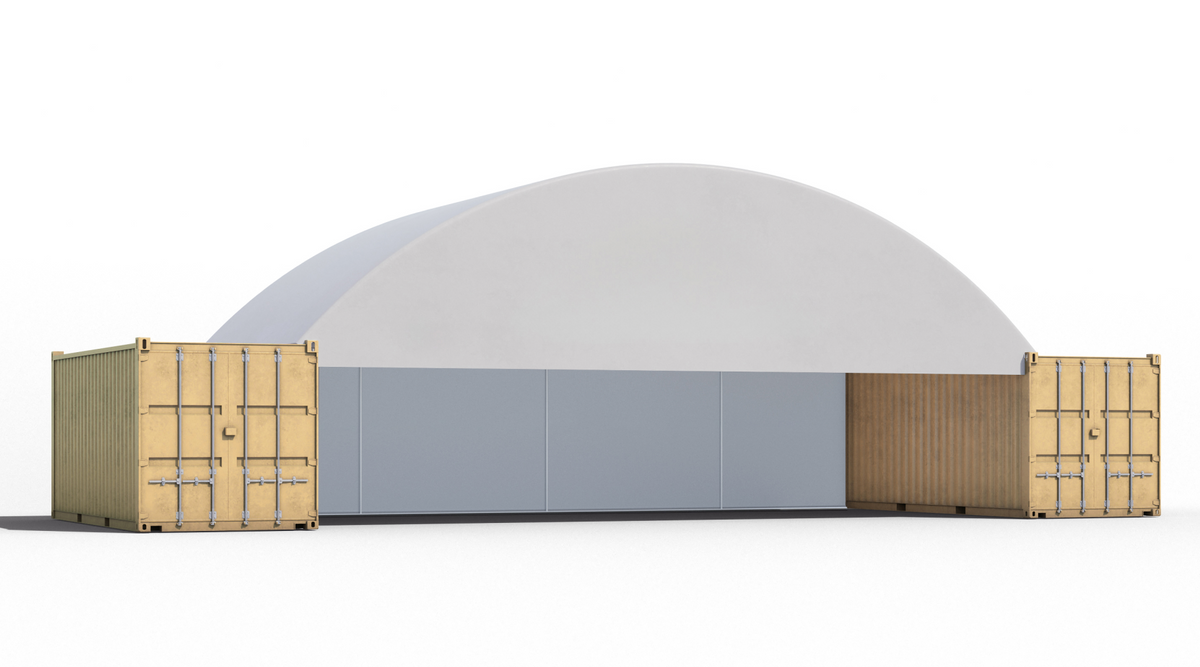

Full End Wall

Maximum weather protection for bulk materials, storage and demanding industrial sites.

  • Full-height protection
  • Better environmental control
  • Custom access openings available
Popular

Half End Wall

Extra protection from prevailing weather while maintaining generous access.

  • Reduces wind and rain entry
  • Maintains good ventilation
  • Ideal for machinery storage

Mechanical Door

Add secure, controlled access without sacrificing the shelter's modular design.

  • Lockable access
  • Improved security
  • Personnel or vehicle options

Need something different?

Built around your operation.

We've spent more than 12 years solving unusual storage problems. Roller doors, personnel doors, louvres, custom flashings, extra-wide openings and bespoke fabrication are all possible.

Talk to Our Team

The Container Shelters difference

KeeperTrack

12 Years of Continuous Improvement.

2016 Previous generation
Earlier Container Shelters end wall edge fixing system

Industry standard edge fixing

Our earlier end wall system relied on a more conventional edge-fixing method.

  • More visible fabric movement
  • Less consistent long-term tension
  • Noisy in a wind event
  • More manual adjustment
2026 KeeperTrack today
KeeperTrack continuous bead in an aluminium extrusion

KeeperTrack

A Keder bead slides into a precision aluminium extrusion for a cleaner, tighter finish.

  • Maintains more consistent fabric tension
  • Cleaner, more premium appearance
  • Reduced movement in strong winds
  • Silent in a wind event

Built from more than 12 years of real-world experience.

After supplying thousands of shelters, we redesigned the way our end walls attach to the container. KeeperTrack is the result.

We don't just sell shelters. We continually improve them.

Continuous Keder edge system
Precision Aluminium extrusion
Evolved Through real-world use

Built for business. Proven in the real world.

Project Spotlight

Purpose-built cover for sites with real constraints.

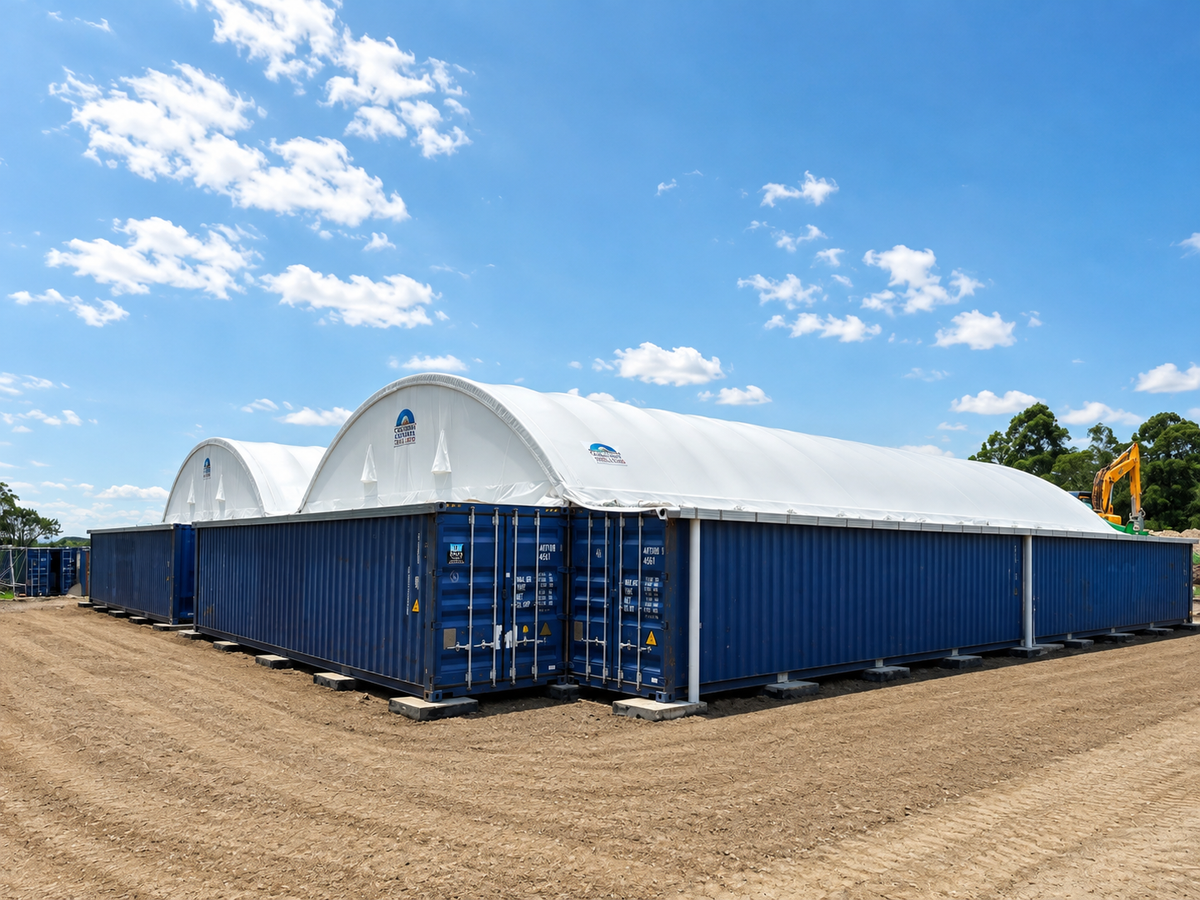

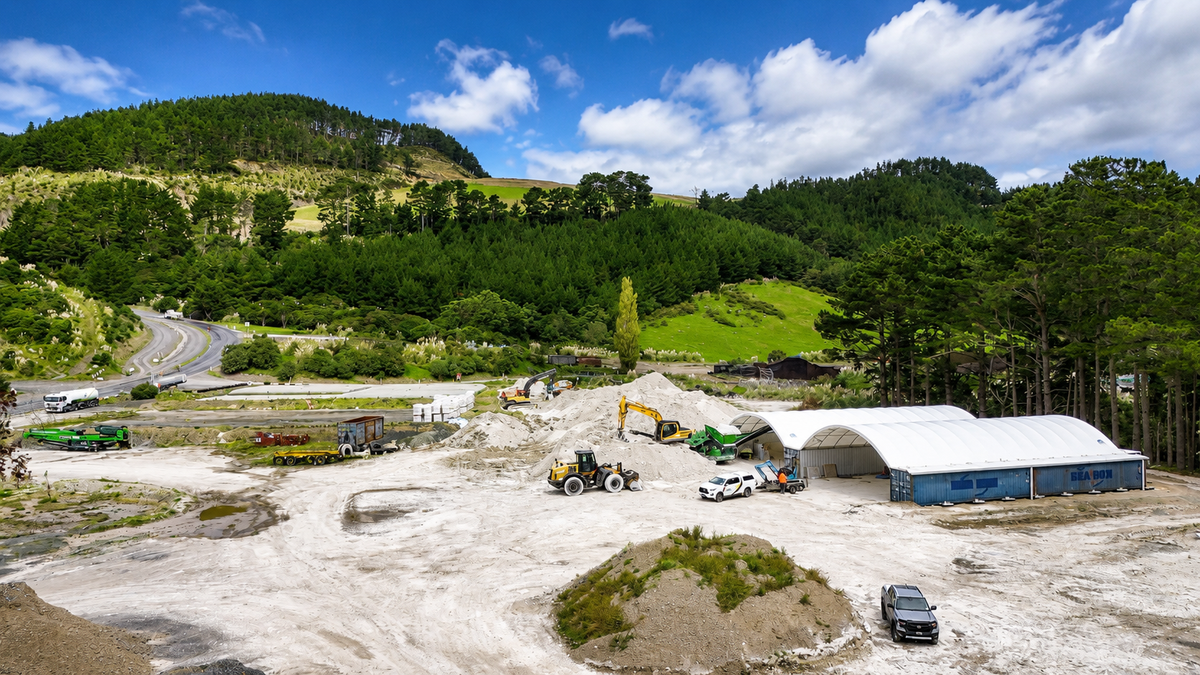

Two 12m x 80ft container shelters at a WM gypsum processing site
Built to Perform. Proven in the Real World. WM New Zealand Tirohia, New Zealand

One of several shelters delivered across a multi-stage programme.

12m Clear span
2 x 80ft Shelters deployed
591m² Protected area
Waste & Recycling Sector

The project

Built heavier, because the site demanded it.

WM needed covered processing space to support an expansion of their gypsum recycling operation. Two 12m x 80ft shelters were deployed, giving continuous clear span for loaders and material handling without internal columns getting in the way.

The site sits in a lee zone, so the whole installation was specified well above standard — heavier structure, closer spacing and upgraded fixings — to handle the wind loads that come with that classification. This was one of several shelters we have delivered for WM across a staged programme, with further stages to follow.

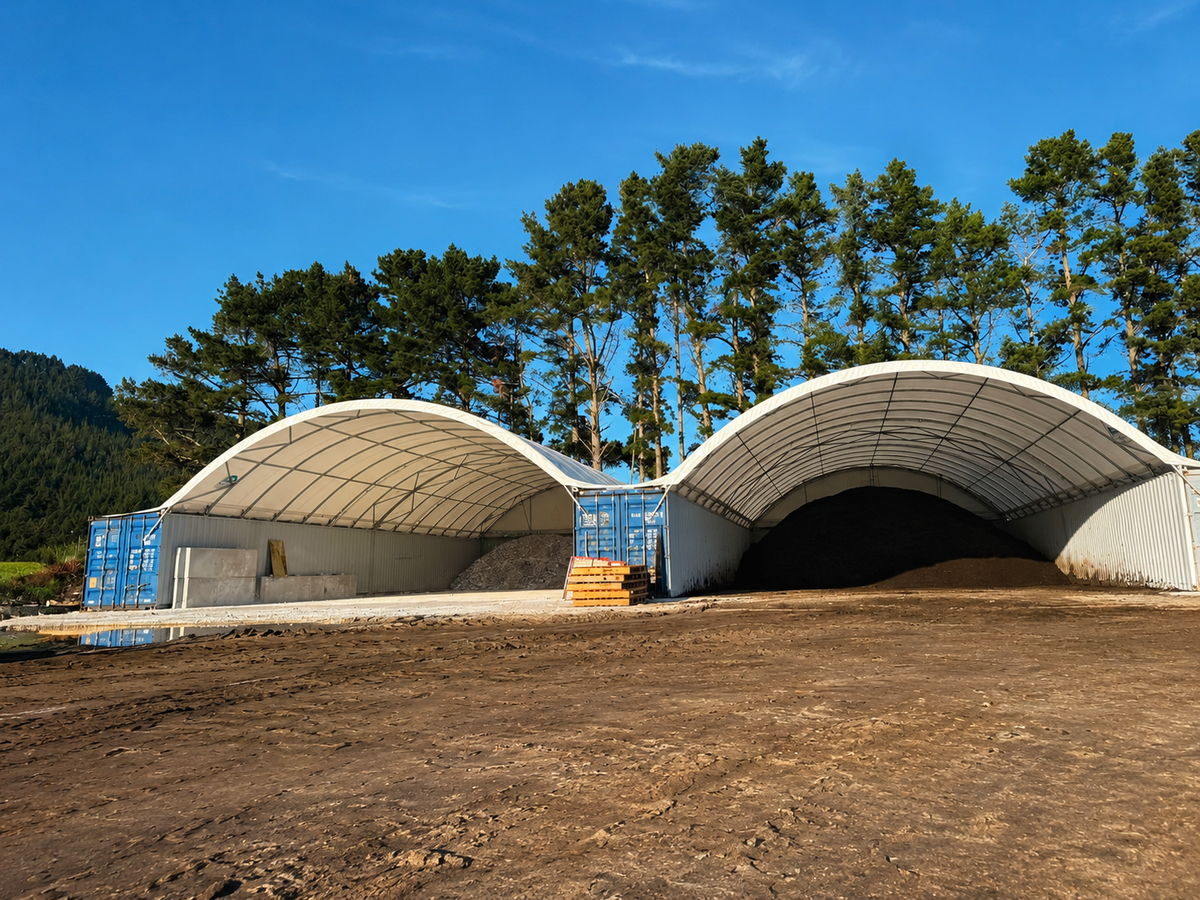

Large clear span opening on a 12m container shelter
View image

Large clear-span openings

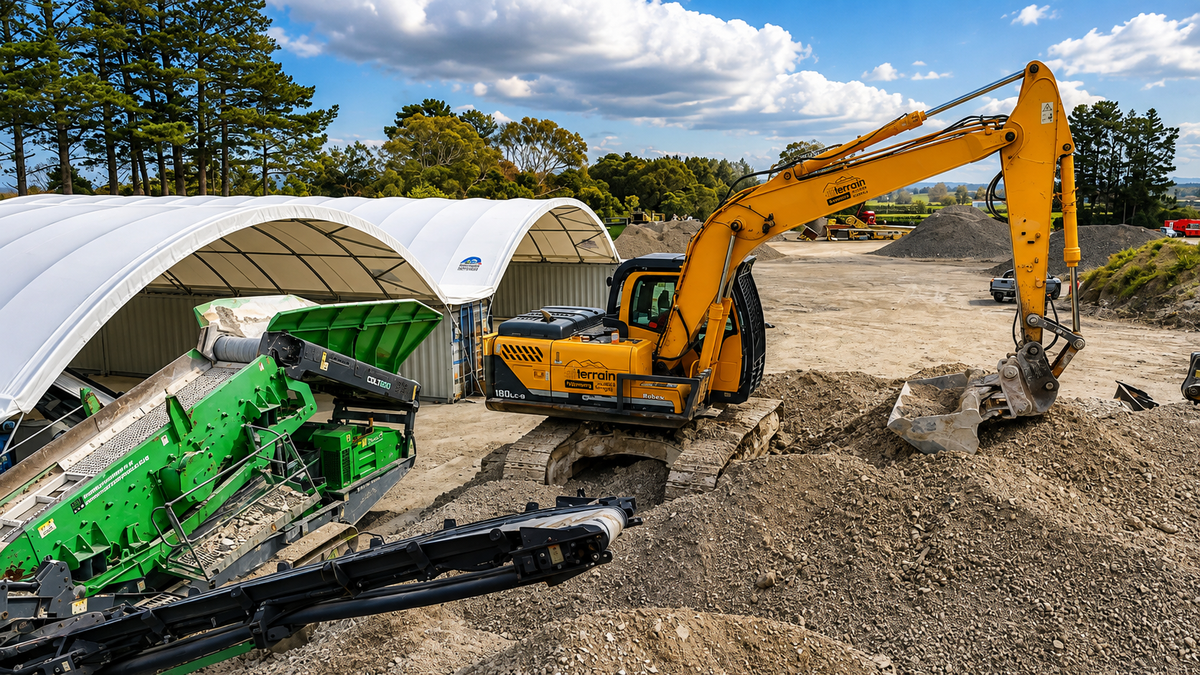

Loader working under a 12m container shelter
View image

Working from day one

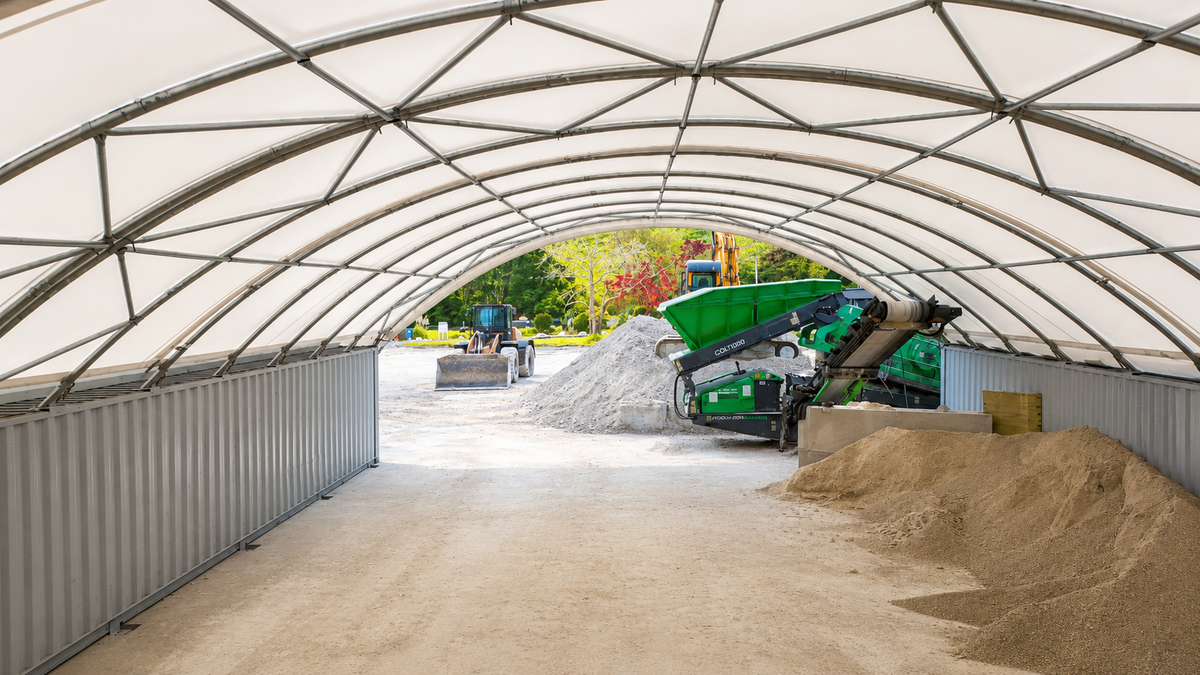

Interior volume of a 12m container shelter
View image

Great internal volume
Prepared pad and stormwater control at the Tirohia site
View image

Site preparation and stormwater control
3,500+ Shelters supplied

Proven across New Zealand, Australia and the Pacific.

From farm storage to major commercial installations, every project benefits from more than 12 years of continuous product refinement and real-world experience.
