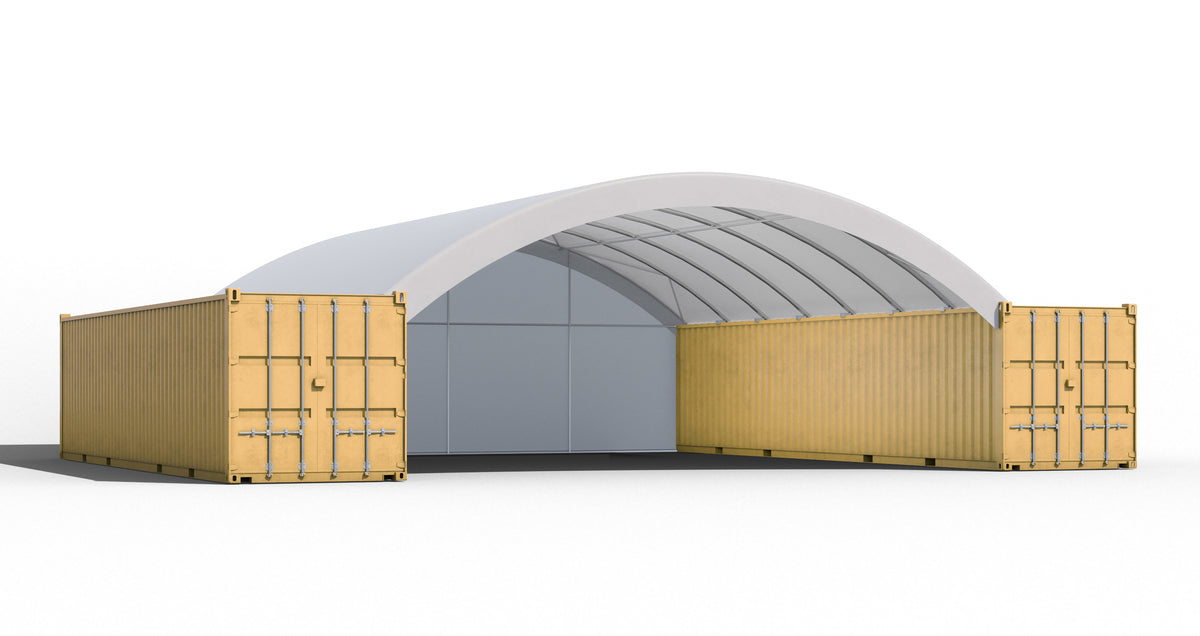

10m Super Heavy Duty container shelter

Super heavy-duty container shelter

10m Super Heavy Duty

Wide-span coverage with the lowest profile in the range.

Get My Quote
Talk to our team 0800 474 233
10m Clear span
NZ Engineered
10 Year Cover warranty
3,500+ Shelters supplied

Available lengths

Covered area 61 m²
Select a length to see the covered area.

Technical overview

10m Super Heavy Duty specifications

A 10-metre span with the lowest rise in the range, presented clearly for early planning and quoting.

Every Container Shelters end wall is modular, meaning it can be added, removed or upgraded later if your requirements change.

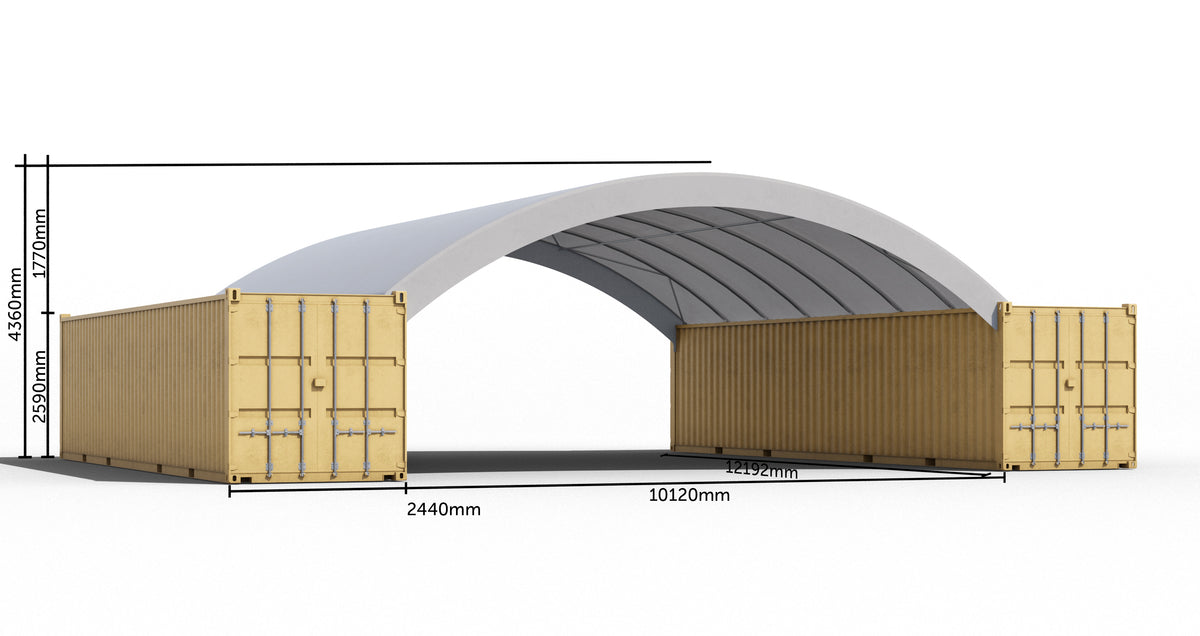

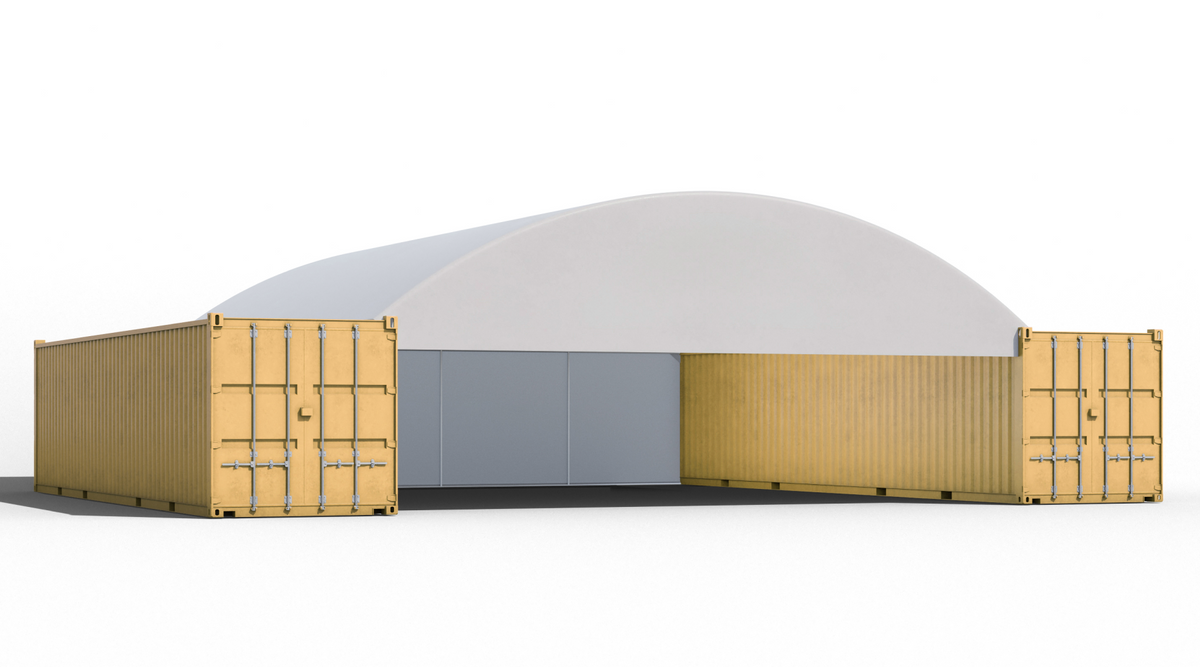

10m Super Heavy Duty container shelter render

Indicative dimensions shown. Final design is confirmed during engineering.

Clear span 10m (10,120mm) between containers
Length options 20ft, 40ft, 60ft, 80ft, 100ft or custom
Overall height 4.36m on standard containers; 4.66m on Hi-Cube
Rise 1770mm above container height to apex
Frame Hot-dip galvanised structural steel
Cover 610gsm UV-stabilised RipStop PVC membrane
Mounting Containers, block walls, timber or steel posts
Wind zones Engineered to suit all New Zealand wind zones. Lee zones and other specific-engineering sites are assessed individually
Engineering NZ engineered with site-specific options
Warranty 10-year full replacement factory warranty

Planning a project?

Get a site-specific quote

Tell us the location, required length and intended use. We'll recommend the right configuration and confirm engineering requirements.

Get a Quote
Site-specific engineering and final dimensions may vary according to location, exposure and mounting method.

Mounting options

One width, mounted your way.

Mount inside to inside for the quoted clear span, or outside to outside to bring the containers under cover as well. Either option works on single or double-stacked containers.

Not every site suits containers. We also mount on block walls, timber or steel posts — see the New Zealand Police project below.

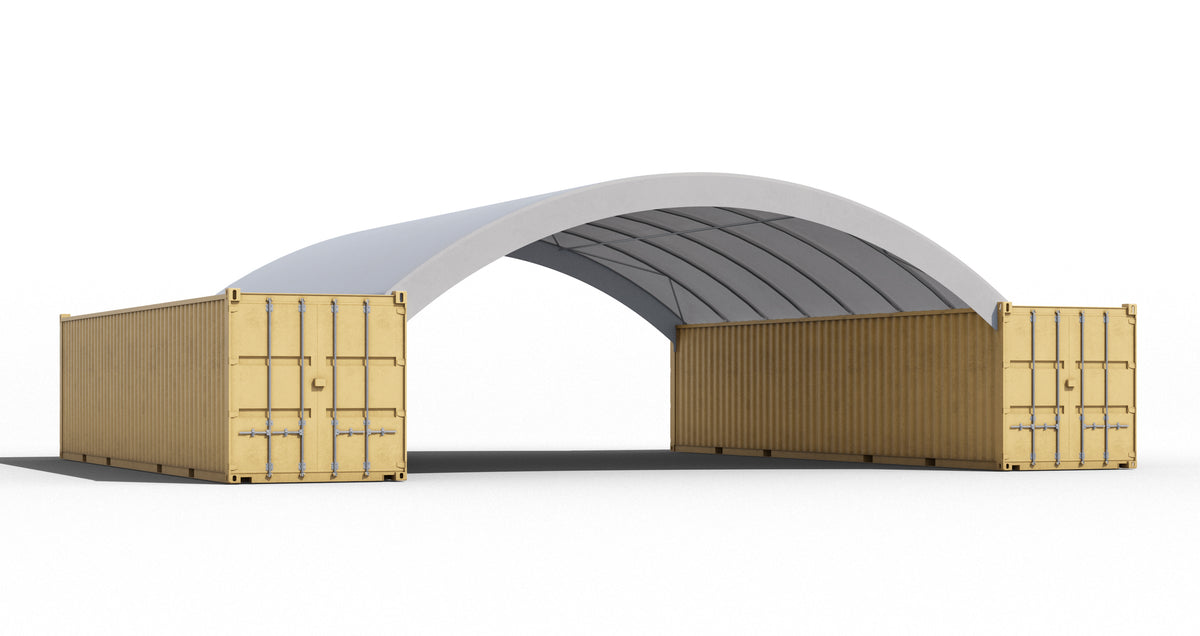

Inside to inside mounted 10m container shelter, single stack Standard

Inside to Inside - Single Stack

The shelter mounts to the inner edges of the containers. The quoted span is the clear space between them.

  • Our standard configuration
  • Span measured between containers
  • Lowest overall height

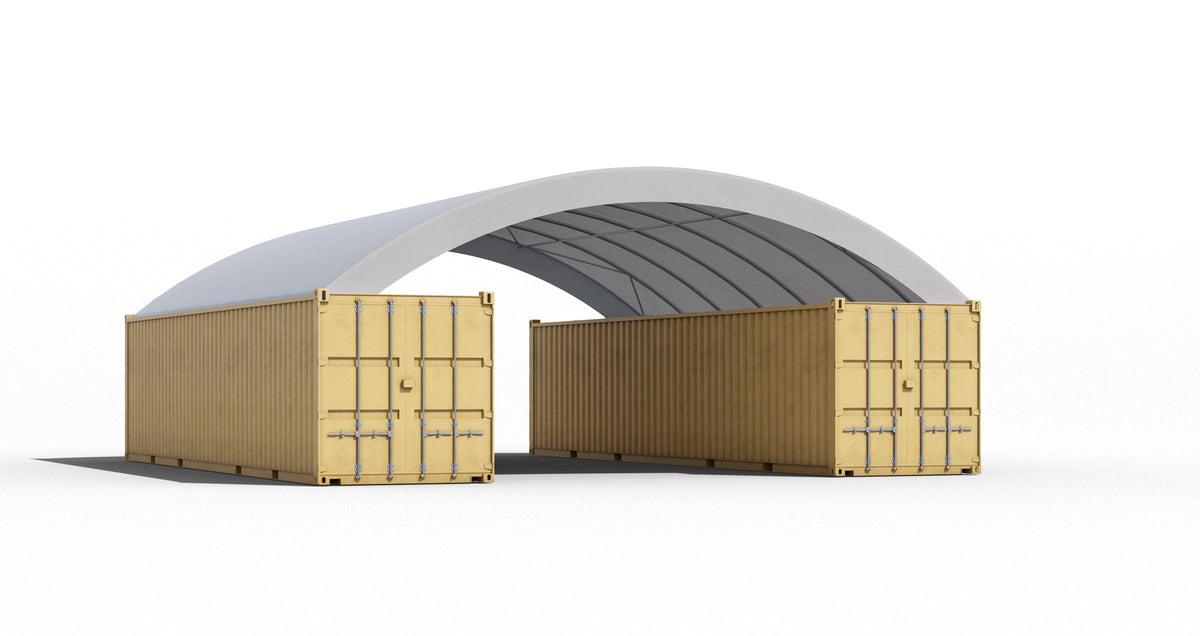

Outside to outside mounted 10m container shelter, single stack

Outside to Outside - Single Stack

The shelter mounts to the outer edges of the containers, so the containers sit under cover as well as the space between them.

  • Wider overall covered width
  • Containers protected under the roof
  • Lowest overall height
Inside to inside mounted 10m container shelter, double stacked

Inside to Inside - Double Stack

Mounted inside to inside on containers stacked two high, for extra height clearance under the shelter.

  • Extra height clearance
  • Span measured between containers
  • Two containers high

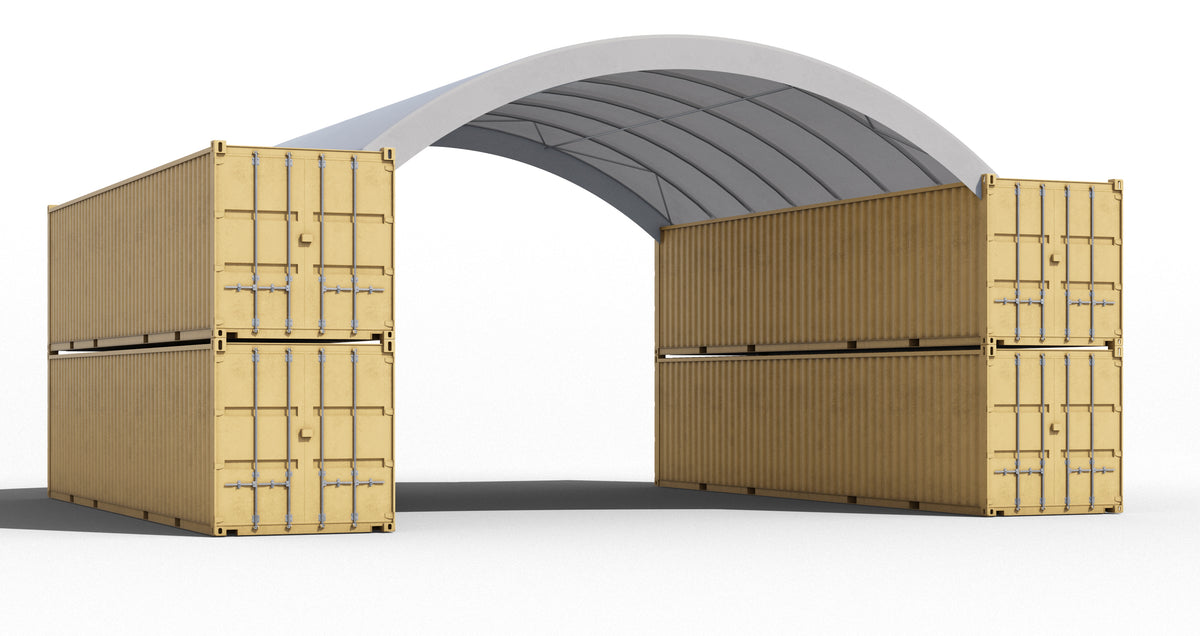

Outside to outside mounted 10m container shelter, double stacked

Outside to Outside - Double Stack

Mounted outside to outside on double-stacked containers, combining the widest covered area with maximum height clearance.

  • Containers protected
  • Extra height clearance
  • Two containers high

Built in the real world

Wide span. Low profile.

From equipment and vehicle storage to workshops and site protection, the 10m span delivers dependable covered space without a conventional building footprint.

Rapid install

Installed in days, with no piles or concrete footings required.

KeeperTrack Endwall System

Tighter is always better for longevity.

Engineered for New Zealand

Site-specific engineering available for wind, snow and seismic requirements.

Flexible configuration

Available in multiple lengths and mounting options.

End wall options

Configure your shelter for the way you work.

Choose the right balance of access, weather protection, security and airflow for your site.

Every Container Shelters end wall is modular, meaning it can be added, removed or upgraded later if your requirements change.

Open End

Maximum access and airflow for machinery, vehicles and high-traffic operations.

  • Lowest-cost configuration
  • Maximum access
  • Fastest installation

Full End Wall

Maximum weather protection for bulk materials, storage and demanding industrial sites.

  • Full-height protection
  • Better environmental control
  • Custom access openings available
Popular

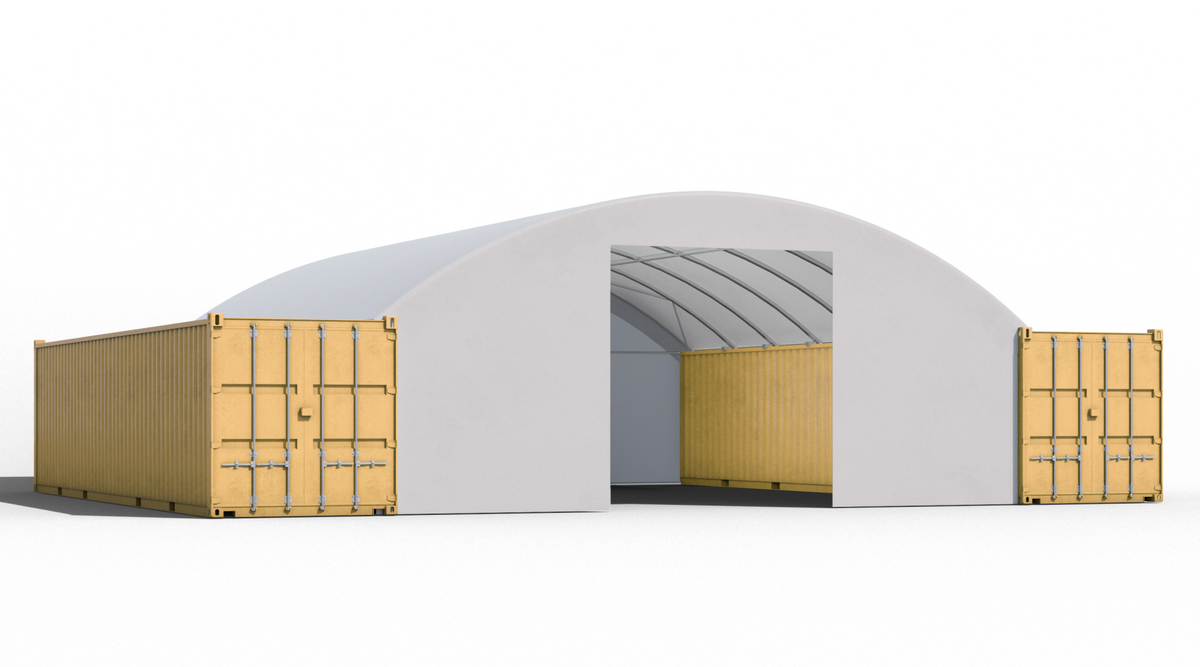

Half End Wall

Extra protection from prevailing weather while maintaining generous access.

  • Reduces wind and rain entry
  • Maintains good ventilation
  • Ideal for machinery storage

Mechanical Door

Add secure, controlled access without sacrificing the shelter's modular design.

  • Lockable access
  • Improved security
  • Personnel or vehicle options

Need something different?

Built around your operation.

We've spent more than 12 years solving unusual storage problems. Roller doors, personnel doors, louvres, custom flashings, extra-wide openings and bespoke fabrication are all possible.

Talk to Our Team

The Container Shelters difference

KeeperTrack

12 Years of Continuous Improvement.

2016 Previous generation
Earlier Container Shelters end wall edge fixing system

Industry standard edge fixing

Our earlier end wall system relied on a more conventional edge-fixing method.

  • More visible fabric movement
  • Less consistent long-term tension
  • Noisy in a wind event
  • More manual adjustment
2026 KeeperTrack today
KeeperTrack continuous bead in an aluminium extrusion

KeeperTrack

A Keder bead slides into a precision aluminium extrusion for a cleaner, tighter finish.

  • Maintains more consistent fabric tension
  • Cleaner, more premium appearance
  • Reduced movement in strong winds
  • Silent in a wind event

Built from more than 12 years of real-world experience.

After supplying thousands of shelters, we redesigned the way our end walls attach to the container. KeeperTrack is the result.

We don't just sell shelters. We continually improve them.

Continuous Keder edge system
Precision Aluminium extrusion
Evolved Through real-world use

Built for business. Proven in the real world.

Project Spotlight

Purpose-built cover for sites with real constraints.

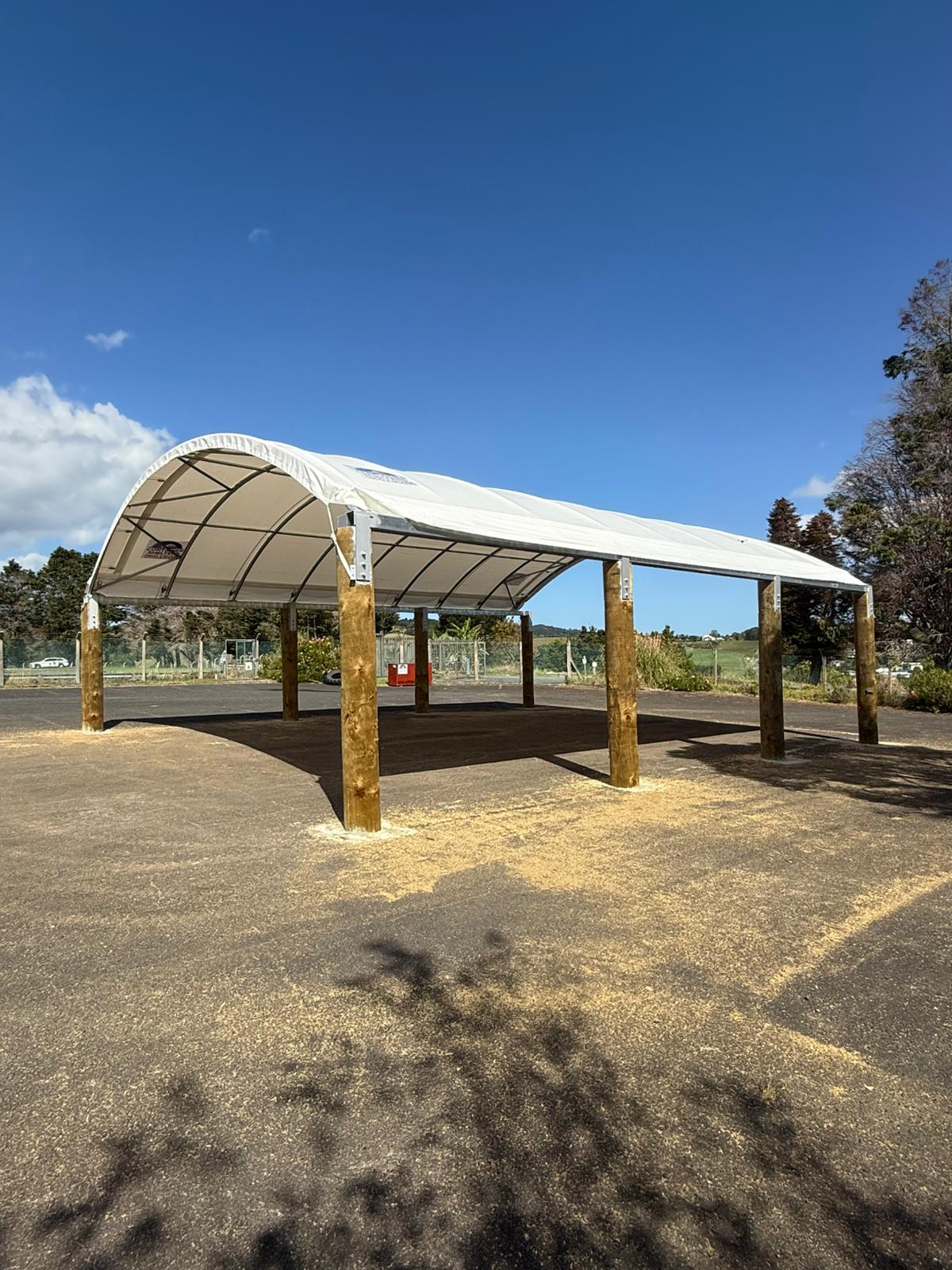

10m container shelter on elevated poles at the New Zealand Police training facility in Whangārei
Built to Perform. Proven in the Real World. New Zealand Police Whangārei

Purpose-built training cover, fully engineered and consent exempted.

10m Clear span
12.19m Overall length
122m² Protected area
Police / Government Sector

The project

All-weather training, whatever Northland throws at it.

New Zealand Police needed covered space at their Whangārei training facility where officers could run vehicle stop and search exercises year-round, without weather cutting a session short.

The answer was a 10m x 40ft shelter mounted on elevated poles rather than containers, giving full vehicle clearance underneath. Fully engineered, issued with a PS1 and signed off under a Council exemption.

3,500+ Shelters supplied

Proven across New Zealand, Australia and the Pacific.

From farm storage to major commercial installations, every project benefits from more than 12 years of continuous product refinement and real-world experience.
