Big Bertha commercial container shelter

Large-span container shelter

Big Bertha

Built for serious storage.

Get My Quote
Talk to our team 0800 474 233
16m Clear span
21m Overall width
10 Year Cover warranty
3,500+ Shelters supplied

Available lengths

Covered area
Select a length to preview the shelter configuration.

Technical overview

Big Bertha specifications

Serious scale, proven engineering and the widest stocked span in the range — presented clearly for early planning and quoting.

Every Container Shelters end wall is modular, meaning it can be added, removed or upgraded later if your requirements change.
Big Bertha measured container shelter render

Indicative dimensions shown. Final design is confirmed during engineering.

Clear span 16.12m between containers
Overall footprint 21m including the containers
Length options 20ft, 40ft, 60ft, 80ft, 100ft or custom
Height 6.20m above containers; approx. 8.79m overall
Frame Hot-dip galvanised structural steel
Cover 610gsm UV-stabilised RipStop PVC membrane
Mounting Shipping containers only, mounted to the outside edges
Wind zones Engineered to suit all New Zealand wind zones. Lee zones and other specific-engineering sites are assessed individually
Engineering NZ engineered with site-specific options
Warranty 10-year full replacement factory warranty

Planning a project?

Get a site-specific quote

Tell us the location, required length and intended use. We'll recommend the right configuration and confirm engineering requirements.

Get a Quote Download Profile Sheet
Site-specific engineering and final dimensions may vary according to location, exposure and mounting method.

Container options

Single or double stacked.

Big Bertha mounts to the outside edges of shipping containers, so the containers sit under the shelter. Choose single or double-stacked depending on the clearance you need underneath.

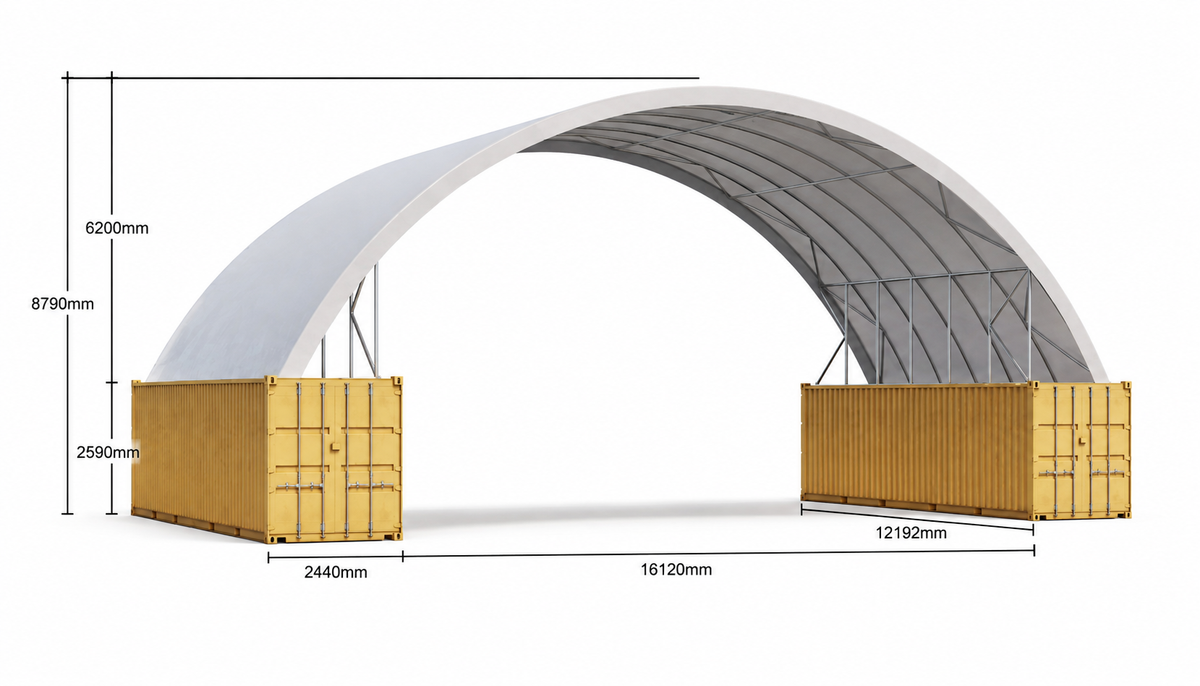

Big Bertha container shelter, single stacked containers Standard

Single Stack

The standard setup. Containers at one high, with the shelter spanning over the top of them.

  • Our standard configuration
  • Huge standard volume
  • Containers under cover

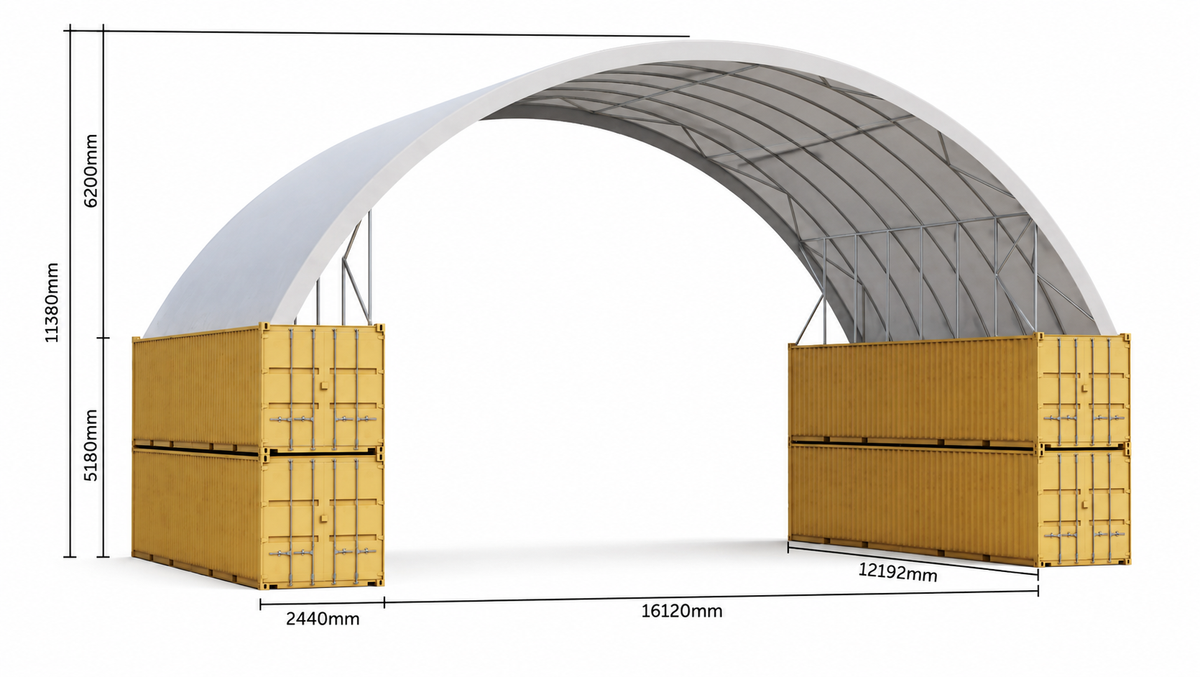

Big Bertha container shelter, double stacked containers

Double Stack

Containers stacked two high for extra clearance underneath — for tall machinery, tipping trucks or stacked product.

  • Extra height clearance
  • Two containers high
  • Containers under cover

Built in the real world

Big scale. Proven performance.

From heavy machinery and transport fleets to bulk storage and industrial operations, Big Bertha creates serious covered space without a conventional building footprint.

Big Bertha x 103m

Installed in just days — 2,163m² of protected storage with no piles or concrete footings.

16m clear span

No internal columns. Maximum access for loaders, trucks and heavy machinery.

Engineered for New Zealand

Site-specific engineering available for wind, snow and seismic requirements.

Flexible configuration

Available in multiple lengths and end wall options.

End wall options

Configure your shelter for the way you work.

Choose the right balance of access, weather protection, security and airflow for your site.

Every Container Shelters end wall is modular, meaning it can be added, removed or upgraded later if your requirements change.

Open End

Maximum access and airflow for machinery, vehicles and high-traffic operations.

  • Lowest-cost configuration
  • Maximum access
  • Fastest installation

Full End Wall

Maximum weather protection for bulk materials, storage and demanding industrial sites.

  • Full-height protection
  • Better environmental control
  • Custom access openings available
Popular

Half End Wall

Extra protection from prevailing weather while maintaining generous access.

  • Reduces wind and rain entry
  • Maintains good ventilation
  • Ideal for machinery storage

Mechanical Door

Add secure, controlled access without sacrificing the shelter's modular design.

  • Lockable access
  • Improved security
  • Personnel or vehicle options

Need something different?

Built around your operation.

We've spent more than 12 years solving unusual storage problems. Roller doors, personnel doors, louvres, custom flashings, extra-wide openings and bespoke fabrication are all possible.

Talk to Our Team

The Container Shelters difference

KeeperTrack

12 Years of Continuous Improvement.

2016 Previous generation
Earlier Container Shelters end wall edge fixing system

Industry standard edge fixing

Our earlier end wall system relied on a more conventional edge-fixing method.

  • More visible fabric movement
  • Less consistent long-term tension
  • Noisy in a wind event
  • More manual adjustment
2026 KeeperTrack today
KeeperTrack continuous bead in an aluminium extrusion

KeeperTrack

A Keder bead slides into a precision aluminium extrusion for a cleaner, tighter finish.

  • Maintains more consistent fabric tension
  • Cleaner, more premium appearance
  • Reduced movement in strong winds
  • Silent in a wind event

Built from more than 12 years of real-world experience.

After supplying thousands of shelters, we redesigned the way our end walls attach to the container. KeeperTrack is the result: a cleaner system that holds the fabric more consistently and gives the finished shelter a noticeably sharper appearance.

We don't just sell shelters. We continually improve them.

Continuous Keder edge system
Precision Aluminium extrusion
Evolved Through real-world use

Built for business. Proven in the real world.

Project Spotlight

Large-scale commercial shelter systems designed for demanding real-world environments.

VIP Frame and Truss 103 metre Big Bertha container shelter in Christchurch
Built to Perform. Proven in the Real World. VIP Frame & Truss Christchurch, New Zealand

One of our largest commercial installations to date.

103m Overall length
21m Covered width
2,163m² Protected area
Timber Manufacturing industry

The project

Large-scale protection without compromising access.

When VIP Frame & Truss needed large-scale weather protection for timber storage and production, they required a solution capable of spanning an exceptional distance while remaining practical, durable and economical.

The result was a 103-metre-long Big Bertha installation covering 2,163m², providing uninterrupted covered storage, unrestricted access for forklifts and heavy vehicles, and dependable year-round protection for valuable timber products.

Aerial view of the 103 metre Big Bertha at VIP Frame and Truss
View image

103 metres end to end
Big Bertha shelter covering timber storage
View image

Timber kept dry and accessible
Containers under the Big Bertha shelter roof
View image

Containers sit under the cover
Wide view of the Christchurch Big Bertha installation
View image

2,163m² of covered storage
3,500+ Shelters supplied

Proven across New Zealand, Australia and the Pacific.

From farm storage to major commercial installations, every project benefits from more than 12 years of continuous product refinement and real-world experience.

Explore more projects
