14m Compact container shelter

Compact profile container shelter

14m Compact

A full fourteen-metre span with the lowest rise available at this width.

Get My Quote
Talk to our team 0800 474 233
14m Clear span
NZ Engineered
10 Year Cover warranty
3,500+ Shelters supplied

Available lengths

Covered area 86 m²
Select a length to see the covered area.

Technical overview

14m Compact specifications

The same fourteen-metre clear span as our Truss model, with a lower rise where overall height matters. Published inside to inside.

Every Container Shelters end wall is modular, meaning it can be added, removed or upgraded later if your requirements change.

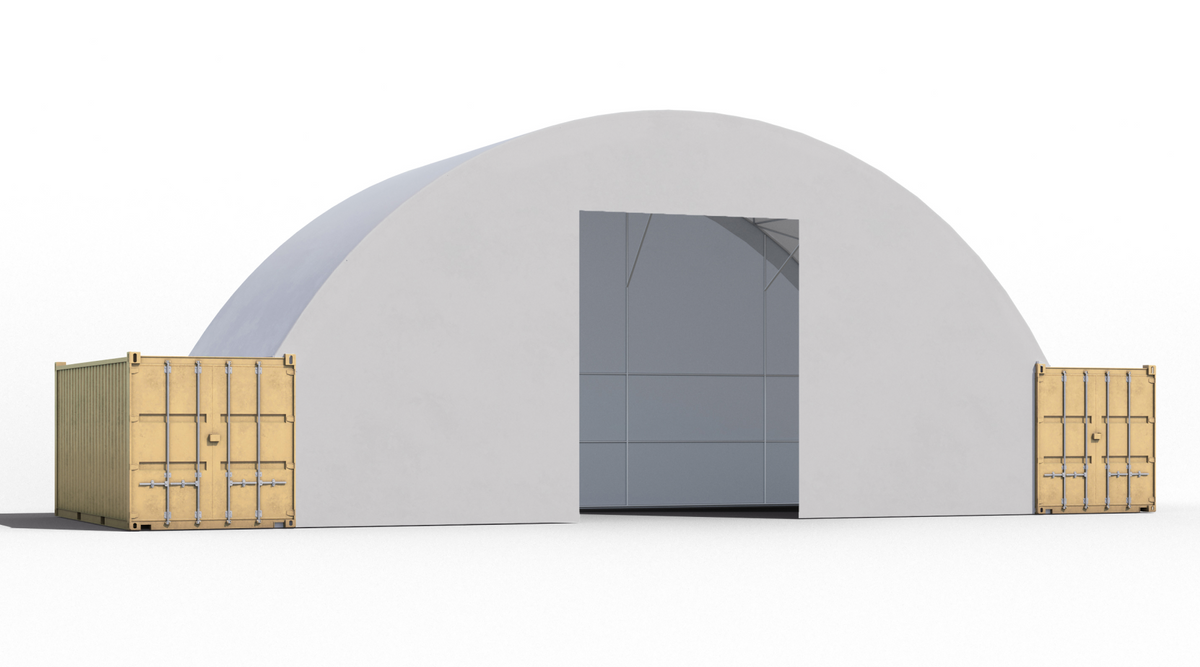

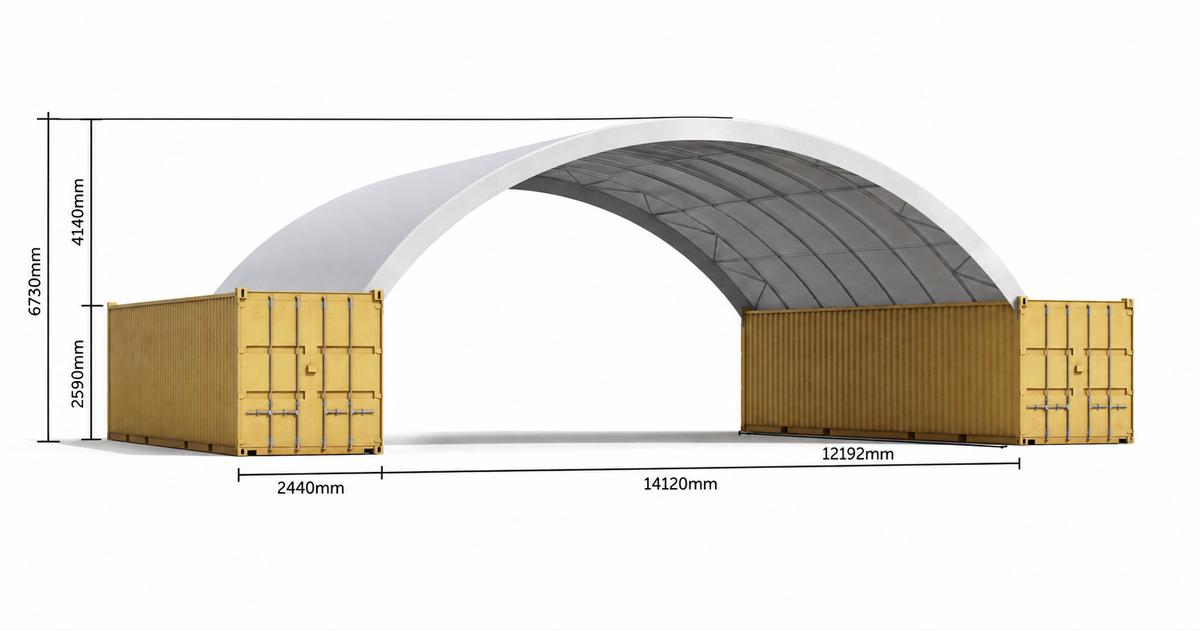

14m Compact container shelter render

Indicative dimensions shown. Final design is confirmed during engineering.

Clear span 14m (14,120mm) inside to inside
Overall footprint Approximately 19m including the containers
Length options 20ft, 40ft, 60ft, 80ft, 100ft or custom — we have built beyond 100m
Overall height 6.73m on standard containers; 7.03m on Hi-Cube
Rise 4,140mm above container height to apex
Frame Hot-dip galvanised structural steel
Cover 610gsm UV-stabilised RipStop PVC membrane
Mounting Containers, block walls, timber or steel posts
Wind zones Engineered to suit all New Zealand wind zones. Lee zones and other specific-engineering sites are assessed individually
Engineering NZ engineered with site-specific options
Warranty 10-year full replacement factory warranty

Planning a project?

Get a site-specific quote

Tell us the location, required length and intended use. We'll recommend the right configuration and confirm engineering requirements.

Get a Quote
Site-specific engineering and final dimensions may vary according to location, exposure and mounting method.

Mounting options

One width, mounted your way.

The shelter is the same size either way. Mount inside to inside for the full 14m clear span, or outside to outside to bring the containers under cover as well — which reduces the clear space between them to approximately 9.64m. Either option works on single or double-stacked containers.

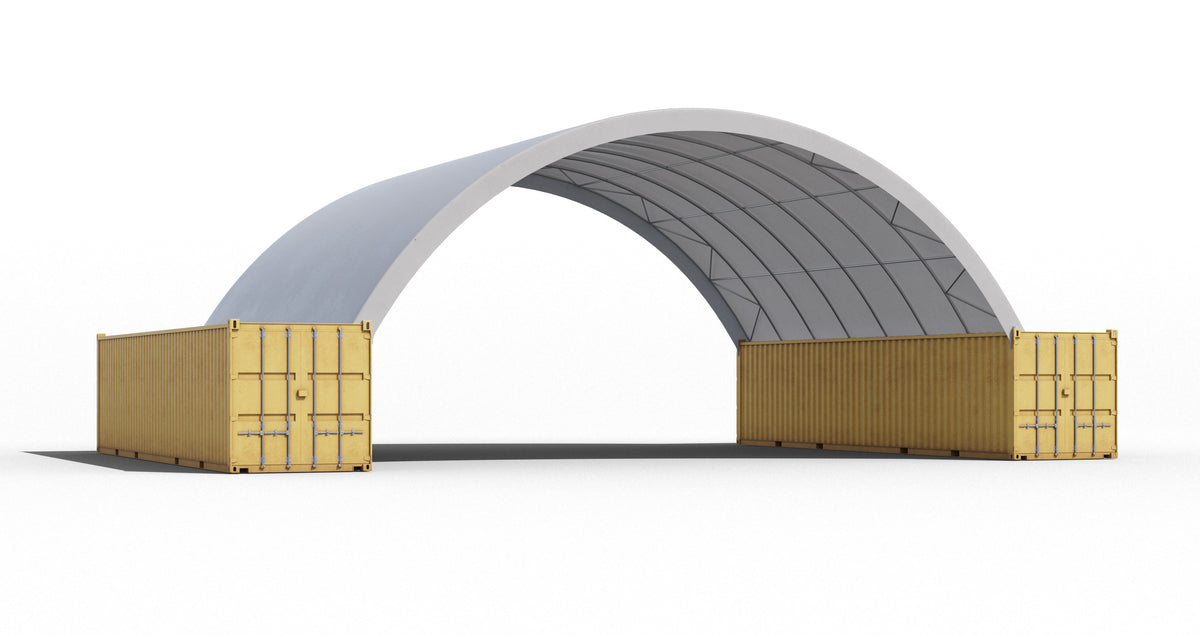

Inside to inside mounted 14m container shelter, single stack Standard

Inside to Inside - Single Stack

The shelter mounts to the inner edges of the containers. The quoted 14m span is the clear space between them.

  • Our standard configuration
  • Span measured between containers
  • Lowest overall height

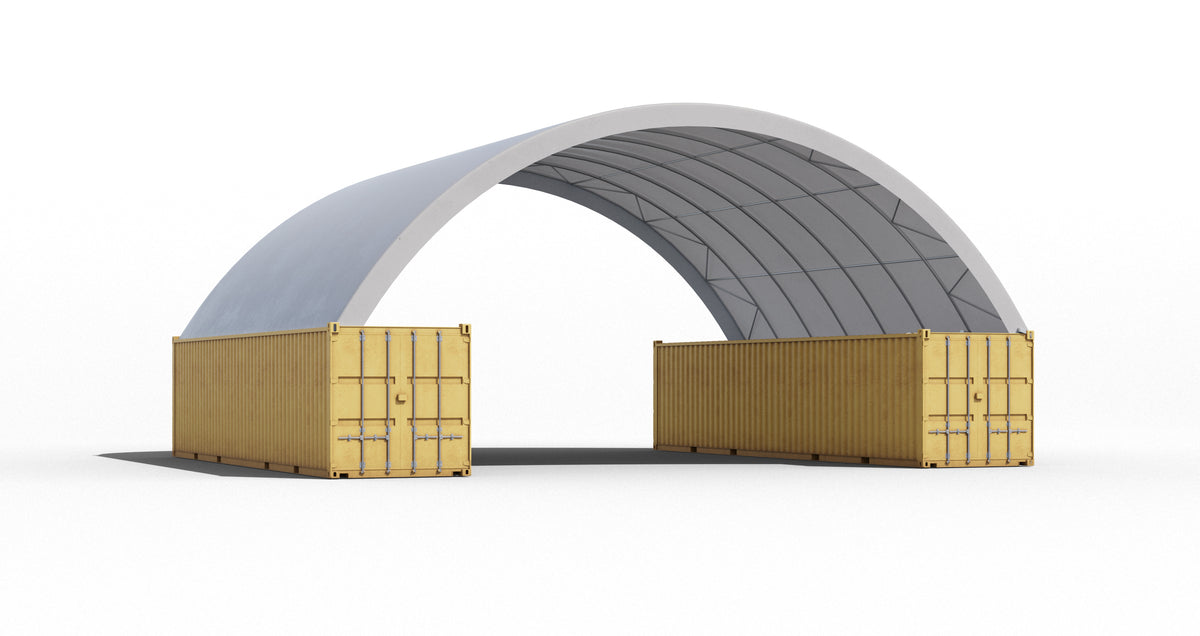

Outside to outside mounted 14m container shelter, single stack

Outside to Outside - Single Stack

The shelter mounts to the outer edges of the containers, so the containers sit under cover as well. The clear space between them is approximately 9.64m.

  • Approximately 9.64m between containers
  • Containers protected under the roof
  • Same overall shelter size

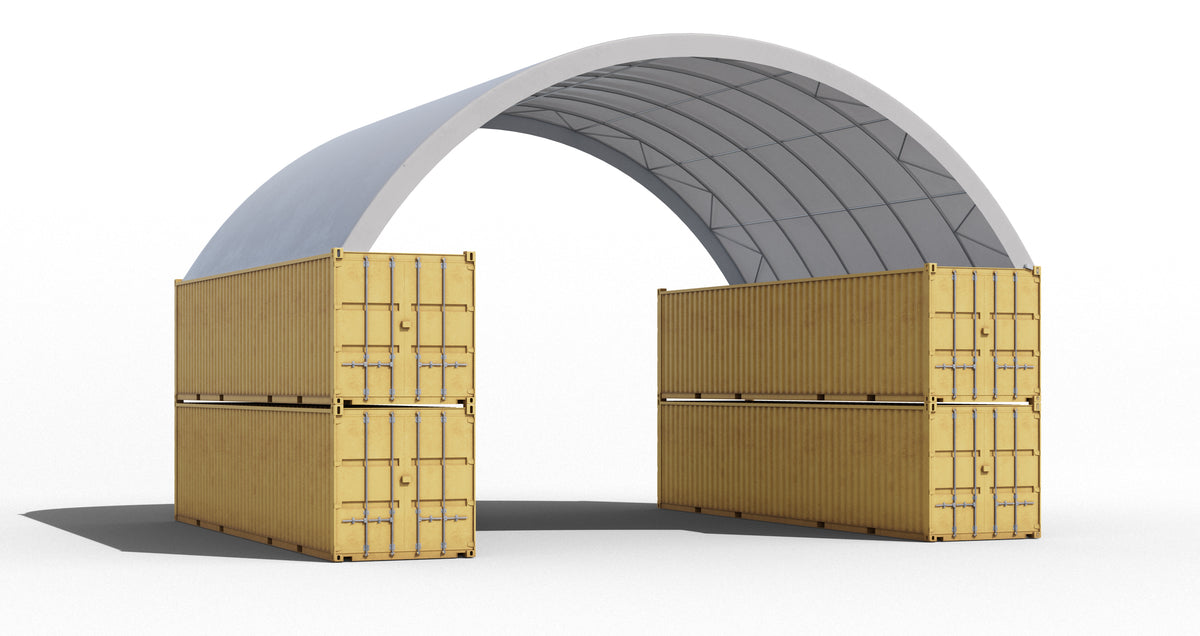

Inside to inside mounted 14m container shelter, double stacked

Inside to Inside - Double Stack

Mounted inside to inside on containers stacked two high, for extra height clearance under the shelter.

  • Extra height clearance
  • Span measured between containers
  • Two containers high

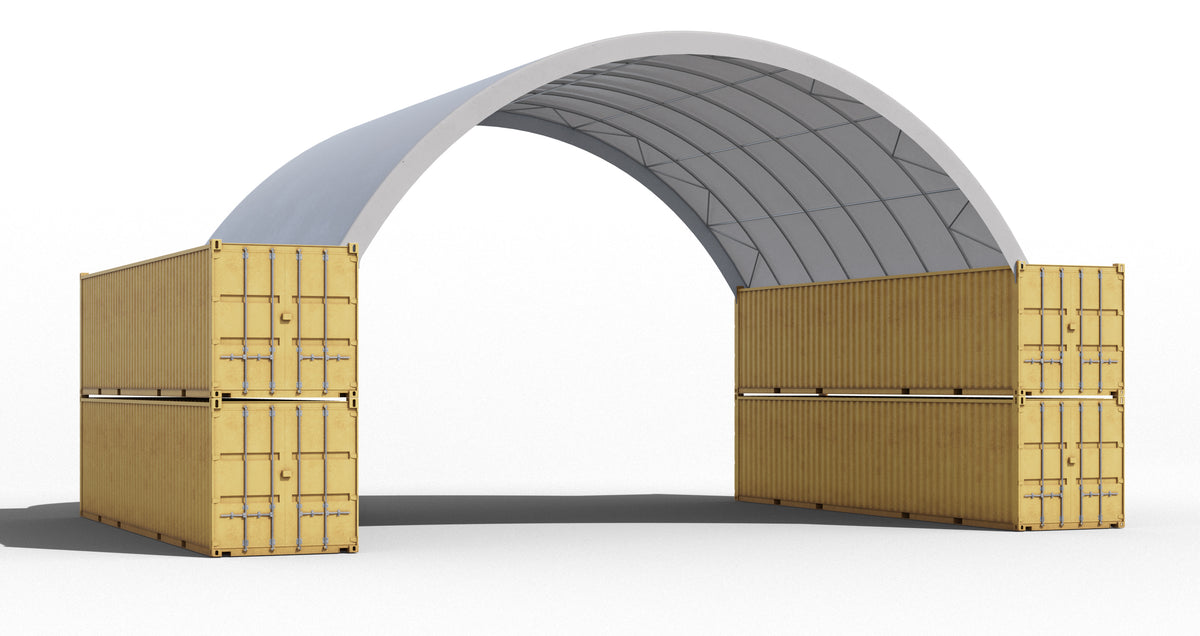

Outside to outside mounted 14m container shelter, double stacked

Outside to Outside - Double Stack

Mounted outside to outside on double-stacked containers, bringing the containers under cover with maximum height clearance.

  • Containers under cover
  • Extra height clearance
  • Two containers high

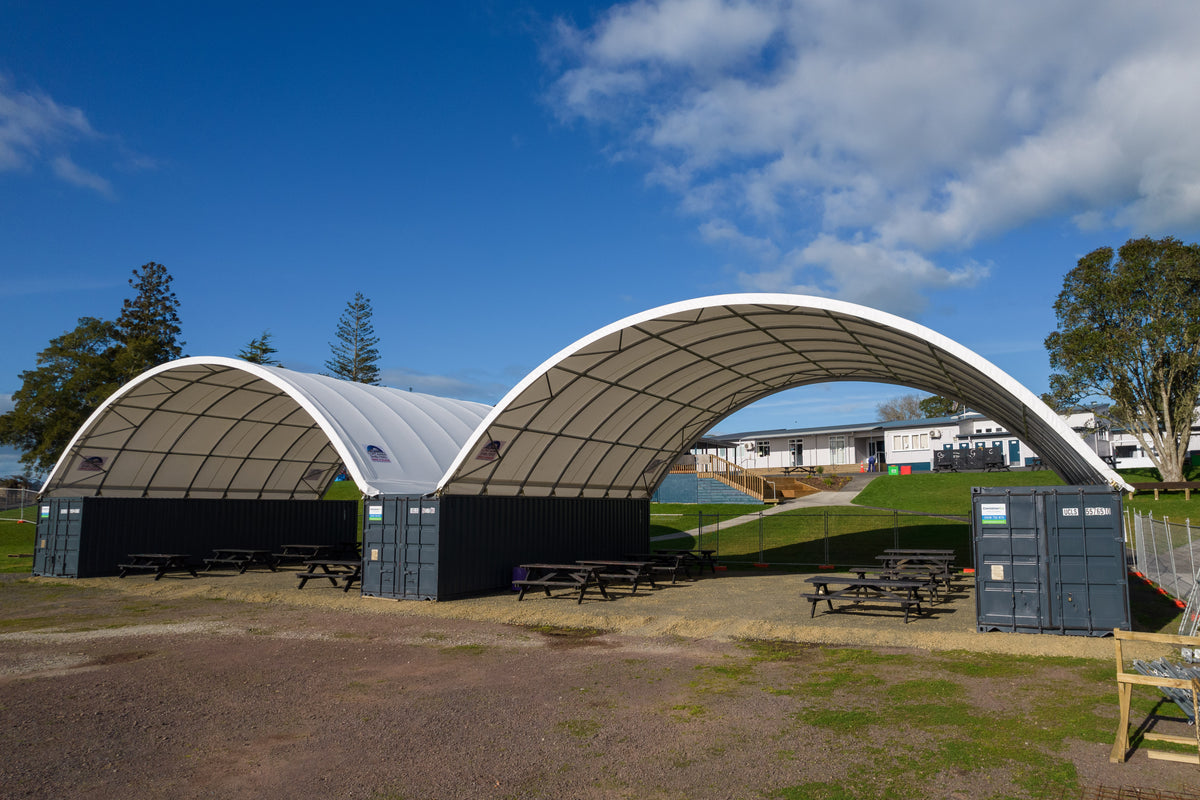

Built in the real world

Wide span. Lower profile.

Where height restrictions, visual impact or wind exposure matter, the Compact gives you the full fourteen-metre span with less overall height.

Wide clear span

Drive through, or close it in.

Configured to suit

Combine multiple units to reach the coverage you need.

Fast, dependable cover

Fourteen metres of clear span.

End wall options

Configure your shelter for the way you work.

Choose the right balance of access, weather protection, security and airflow for your site.

Every Container Shelters end wall is modular, meaning it can be added, removed or upgraded later if your requirements change.

Open End

Maximum access and airflow for machinery, vehicles and high-traffic operations.

  • Lowest-cost configuration
  • Maximum access
  • Fastest installation

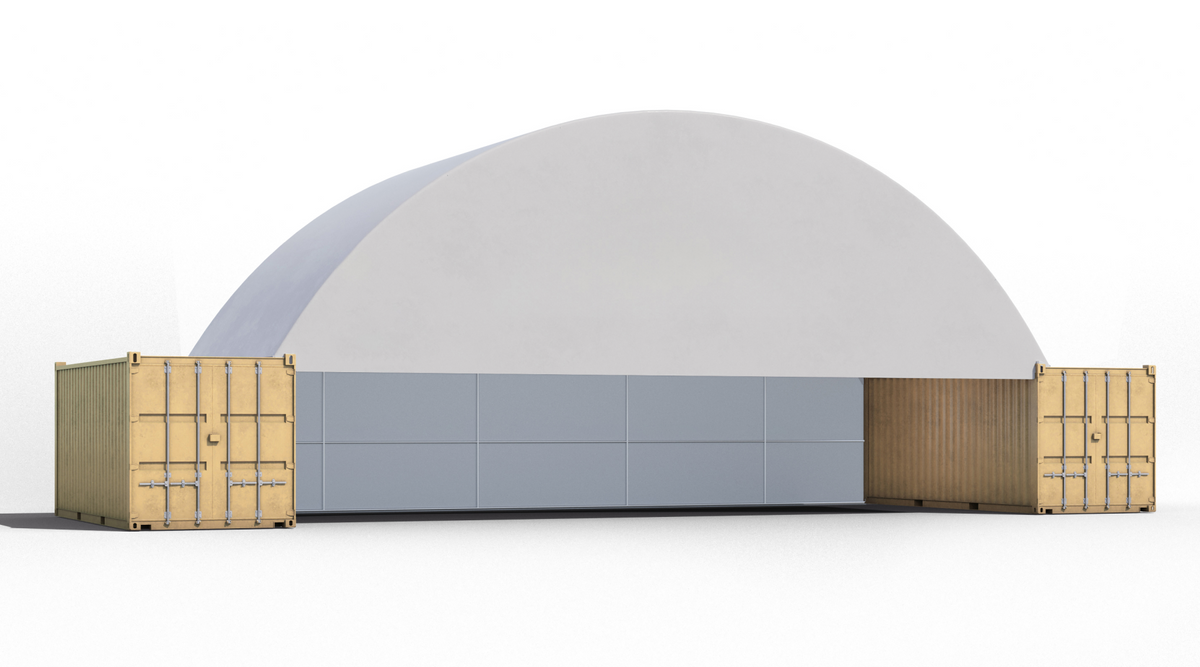

Full End Wall

Maximum weather protection for bulk materials, storage and demanding industrial sites.

  • Full-height protection
  • Better environmental control
  • Custom access openings available
Popular

Half End Wall

Extra protection from prevailing weather while maintaining generous access.

  • Reduces wind and rain entry
  • Maintains good ventilation
  • Ideal for machinery storage

Mechanical Door

Add secure, controlled access without sacrificing the shelter's modular design.

  • Lockable access
  • Improved security
  • Personnel or vehicle options

Need something different?

Built around your operation.

We've spent more than 12 years solving unusual storage problems. Roller doors, personnel doors, louvres, custom flashings, extra-wide openings and bespoke fabrication are all possible.

Talk to Our Team

The Container Shelters difference

KeeperTrack

12 Years of Continuous Improvement.

2016 Previous generation
Earlier Container Shelters end wall edge fixing system

Industry standard edge fixing

Our earlier end wall system relied on a more conventional edge-fixing method.

  • More visible fabric movement
  • Less consistent long-term tension
  • Noisy in a wind event
  • More manual adjustment
2026 KeeperTrack today
KeeperTrack continuous bead in an aluminium extrusion

KeeperTrack

A Keder bead slides into a precision aluminium extrusion for a cleaner, tighter finish.

  • Maintains more consistent fabric tension
  • Cleaner, more premium appearance
  • Reduced movement in strong winds
  • Silent in a wind event

Built from more than 12 years of real-world experience.

After supplying thousands of shelters, we redesigned the way our end walls attach to the container. KeeperTrack is the result.

We don't just sell shelters. We continually improve them.

Continuous Keder edge system
Precision Aluminium extrusion
Evolved Through real-world use

Built for business. Proven in the real world.

Project Spotlight

Purpose-built cover for sites with real constraints.

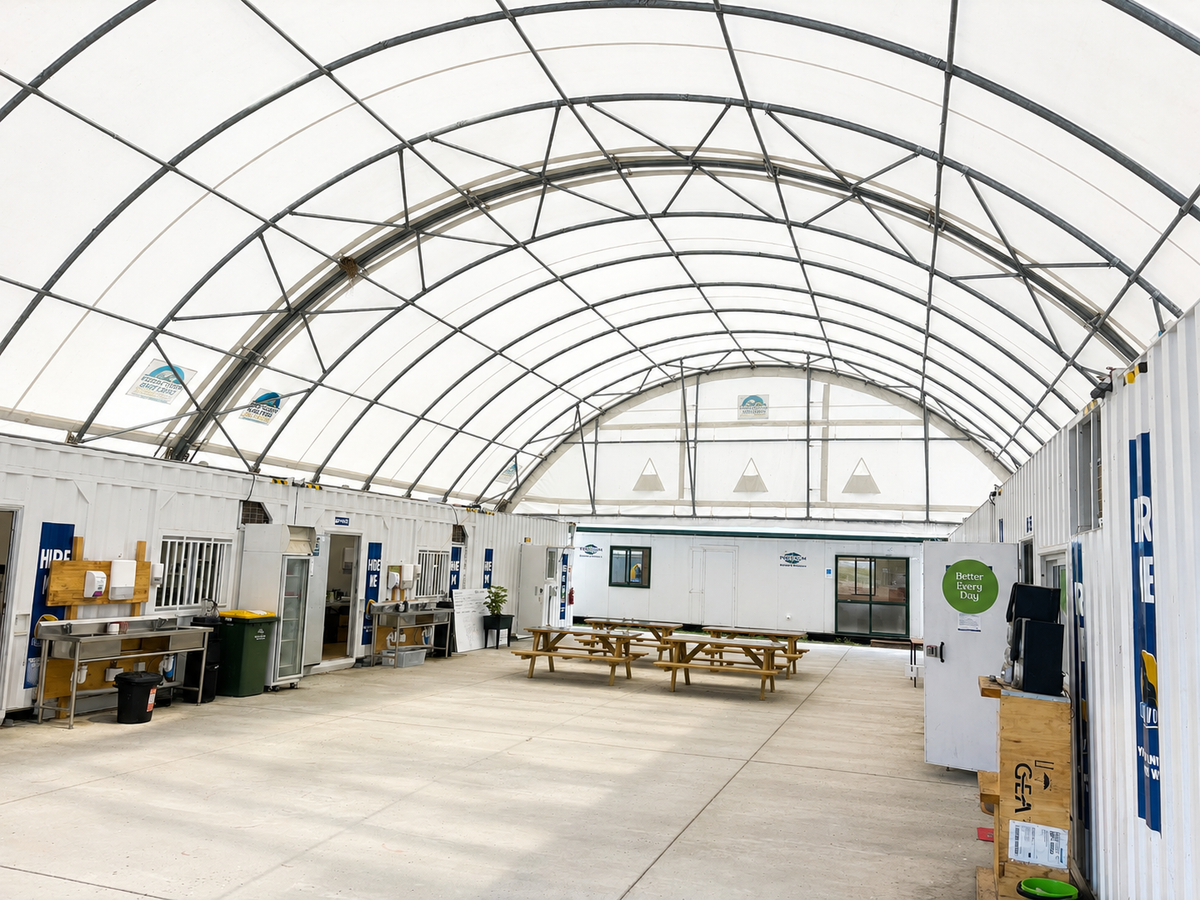

Two 14m Compact container shelters forming a site office at the Fonterra Studholme plant
Built to Perform. Proven in the Real World. Fonterra Studholme, South Canterbury

A temporary site office that had to work from day one.

14m Clear span
2 x 40ft End on end
344m² Protected area
Dairy Sector

The project

Rented containers. No welding. Still rock solid.

Fonterra needed a covered site office at their Studholme plant while works were carried out. Two 14m x 40ft Compact shelters were installed end on end, giving a continuous column-free space for the duration of the project.

The containers were rented, which ruled out our standard approach of welding the baseplates down. Instead we used a twistlock beam system with externally mounted concrete ballast, holding the shelter securely in place without a single modification to the containers. Half end panels at both ends keep out wind and driven rain, and the white PVC cover fills the space with natural light even on grey days.

3,500+ Shelters supplied

Proven across New Zealand, Australia and the Pacific.

From farm storage to major commercial installations, every project benefits from more than 12 years of continuous product refinement and real-world experience.
